Brand: Thomas & Betts | SKU: 825383

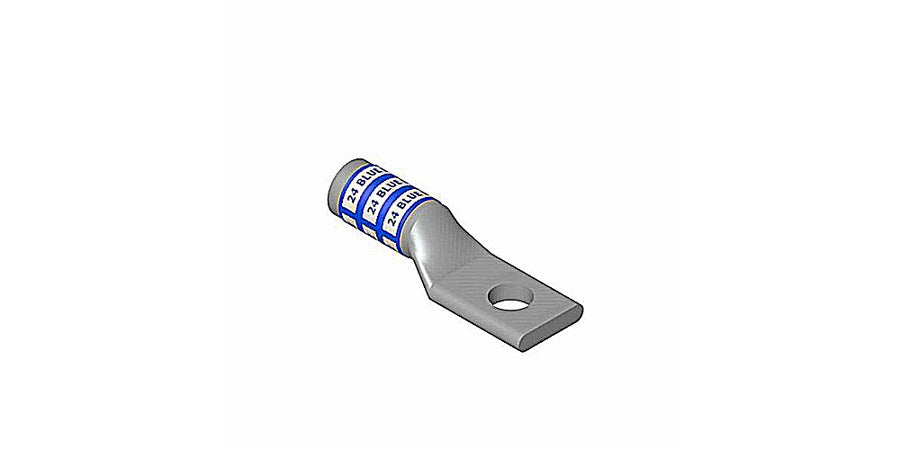

Thomas & Betts 60130 | Compression Lug, Blind End, Long Barrel, 1-Hole, 1/0 AWG Conductor, Wrought Aluminum, 50 Die Index

$38.77

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Thomas & Betts 60130 | Compression Lug, Blind End, Long Barrel, 1-Hole, 1/0 AWG Conductor, Wrought Aluminum, 50 Die Index

Specifications

Thomas & Betts - 60130 - Product Categories

Electrical Supplies and Lighting
Electrical Supplies
Compression Grounding and Bonding
Compression Lugs

Thomas & Betts - 60130 - Specifications

Brand Name	Thomas & Betts
Manufacturer Part Number	60130
Item Description	Compression Lug, Blind End, Long Barrel, 1-Hole, 1/0 AWG Conductor, Wrought Aluminum, 50 Die Index
UPC	78621060130
Barrel Size	Dia: 0.62 In.
Barrel Type	Blind End, Long
Color Code	Tan
Conductor Material	Aluminum/Copper
Conductor Size - Code	1/0 Awg
Conductor Size	1/0 Awg
Die Index	50
Finish	Electro Tin-Plated
Lug L X Tongue W	Lug L: 2.51 In. X Tongue W: 0.88 In.
Lug Material	Copper
Material	Wrought Aluminum
Number Of Holes	1.0
Overall Length	2.51 In.
Overall Width	0.88 In.
Product Type	Non-Insulated Compression Lug
Stud Size	3/8 In.
Tongue Angle	Straight
Tongue Length	0.97 In.
Tongue Size	Lxwxt: 0.97 X 0.88 X 0.19 In.
Tongue Thickness	0.19 In.
Tongue Type	Straight
Tongue Width	0.88 In.
Voltage Rating	600 V To 35 Kv
Voltage	35 Kv
Approval	UL, CSA

Documents and Downloads

Thomas & Betts 60130 Data Sheet
