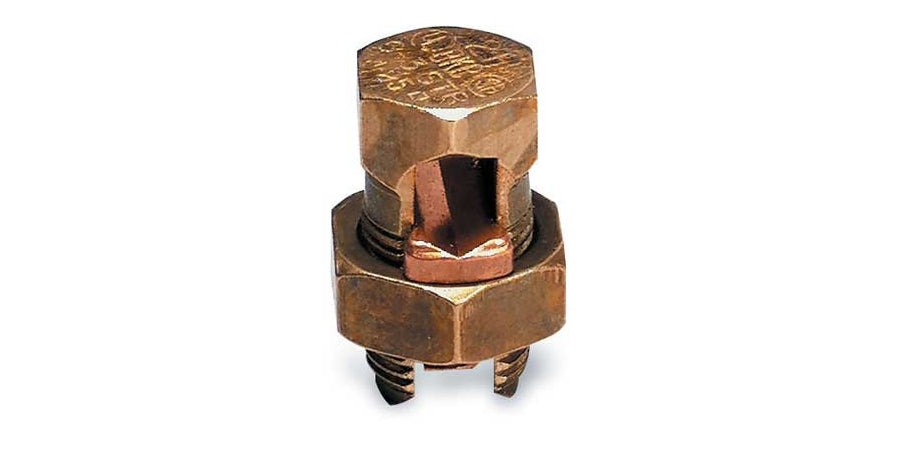

Thomas & Betts 6H | Split Bolt, Bronze Alloy, Solid, 8 AWG
Regular price
$11.92
Unit price
Brand: Thomas & Betts
|
SKU:
836048
Regular price
$11.92
Unit price
Description
Description
Thomas & Betts 6H | Split Bolt, Bronze Alloy, Solid, 8 AWG
Type H - high strength split-bolt connector, conductor range for equal main and tap 6 sol-8 sol, conductor range for min tap with one max main 14 sol
Specifications
Specifications
Thomas & Betts - 6H - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Mechanical Grounding and Bonding
- Mechanical Split Bolts
Thomas & Betts - 6H - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | 6H |
| Item Description | Split Bolt, Bronze Alloy, Solid, 8 AWG Type H - high strength split-bolt connector, conductor range for equal main and tap 6 sol-8 sol, conductor range for min tap with one max main 14 sol |
| UPC | 78378620004 |
| Color | Metallic |
| Conductor Material | Copper-To-Copper Connections |
| Conductor Size | 8 Awg |
| Conductor Type | Solid |
| Hex Size | 21/32 In. |
| Installation | Hex Split Bolt And Hex Nut |
| Length | 31/32 In. |
| Material Finish | Corrosion-Resistant |
| Material | Bronze Alloy |
| Product Type | Split Bolt |
| Run Acsr Max | Not Applicable |
| Run Acsr Min | Not Applicable |
| Run Awg Max | 6 Sol. |
| Run Awg Min | 8 Sol. |
| Special Rating | Ul E9809 |
| Tap Acsr Max | Not Applicable |
| Tap Acsr Min | Not Applicable |
| Tap Awg Max | 6 Sol. |
| Tap Awg Min | 8 Sol. |
| Type | Connector, Split Bolt |
| Width | 21/32 In. |
| Approval | UL, CSA |
