Brand: Thomas & Betts
|
SKU:
635052

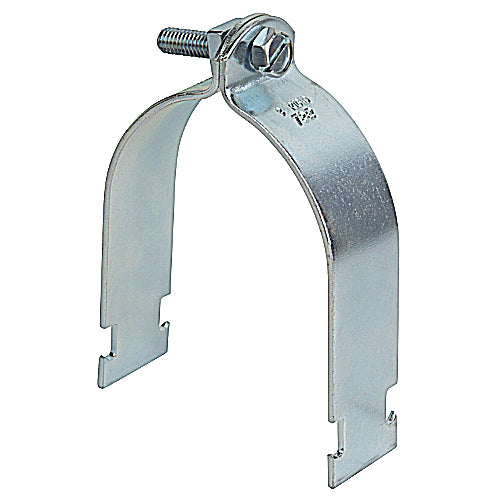

Thomas & Betts 702 4 EG | Superstrut 2-Piece Rigid/IMC Conduit Clamp, ElectroGalv Finish, 4 in., 11ga
Regular price
$5.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 702 4 EG | Superstrut 2-Piece Rigid/IMC Conduit ...
Regular price
$5.39
Unit price
Description
Description
Thomas and Betts 702 4 EG | Superstrut 2-Piece Rigid/IMC Conduit Clamp, ElectroGalv Finish, 4 in., 11ga
Strap, 11 Gauge, Size 4 Inch, Outer Diameter Size 4.500 Inches, Electro-Galvanized Steel, For Rigid or IMC Conduit, Pipe and Electrical Metal Tubing
Thomas and Betts - 702 4 EG - Features
- Square nut is captivated on the shoulder for easy one-handed tightening.
- Straps are interchangeable with 1-1/2 Inch strut, for broader application.
- Straps are shipped assembled so counting and sorting are easier.
- Pipe and conduit sizes are shown on the strap for easy identification.
Specifications
Specifications
Thomas and Betts - 702 4 EG - North American Specifications
| UNSPSC | 31151901 Metal straps |
|---|---|
| IGCC | 2727 Metal straps |
| Brand Name | Superstrut |
| Type | Pipe Straps, Pipe Clamps & Hangers (Series 700) |
| Special Features | Bolt head is combination slot and hex head for flexibility of attachment |
| Application | Superstrut Pipe Straps are designed to be twist inserted anywhere along the slot side of the channel. |
| Size | 4 Inches |
| Material | Steel |
Thomas and Betts - 702 4 EG - European Specifications
| ETIM | EC002470 Mounting clamp for cable protection tubes |
|---|---|
| Material | Steel |
| Surface protection | Galvanic/electrolytic zinc plated |
| Rotatable | N |
Thomas and Betts - 702 4 EG - Package Information
| Outer Quantity | 25 |
|---|---|
| Outer Dimensions (inches) | 11.75x9.25x4.75 |
| Weight Uom | 50 lbs. per 100 |
