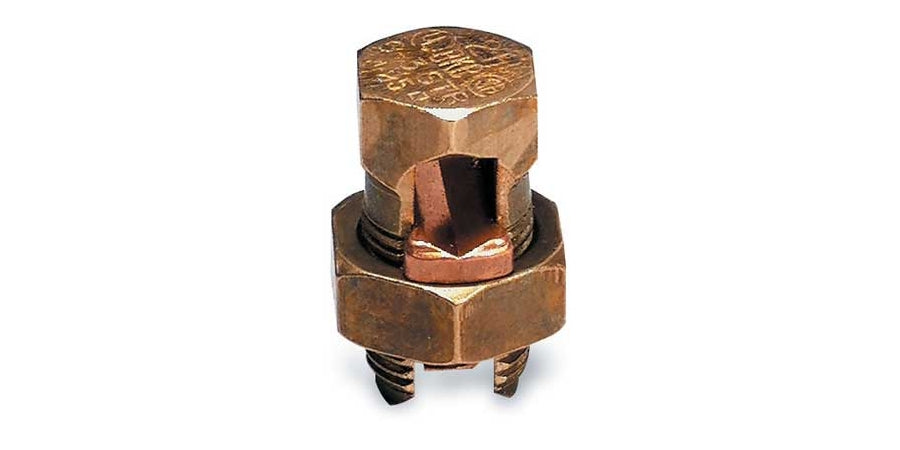

Thomas & Betts 8H | Split Bolt, Bronze Alloy, Solid, 10 AWG
Regular price
$11.92
Unit price
Brand: Thomas & Betts
|
SKU:
865254
Regular price
$11.92
Unit price
Description
Description
Thomas & Betts 8H | Split Bolt, Bronze Alloy, Solid, 10 AWG
Type H - high strength split-bolt connector, conductor range for equal main and tap 8 str-10 sol, conductor range for min tap with one max main 14 sol
Specifications
Specifications
Thomas & Betts - 8H - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Mechanical Grounding and Bonding
- Mechanical Split Bolts
Thomas & Betts - 8H - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | 8H |
| Item Description | Split Bolt, Bronze Alloy, Solid, 10 AWG Type H - high strength split-bolt connector, conductor range for equal main and tap 8 str-10 sol, conductor range for min tap with one max main 14 sol |
| UPC | 78378620002 |
| Color | Metallic |
| Conductor Size | 10 Awg |
| Conductor Type | Solid |
| Hex Size | 1/2 In. |
| Installation | Hex Split Bolt And Hex Nut |
| Length | 25/32 In. |
| Material Finish | Corrosion-Resistant |
| Material | Bronze Alloy |
| Product Type | Split Bolt |
| Run Acsr Max | Not Applicable |
| Run Acsr Min | Not Applicable |
| Run Awg Max | 8 Str. |
| Run Awg Min | 10 Sol. |
| Special Rating | Ul E9809 |
| Tap Acsr Max | Not Applicable |
| Tap Acsr Min | Not Applicable |
| Tap Awg Max | 8 Str. |
| Tap Awg Min | 10 Sol. |
| Type | Connector, Split Bolt |
| Approval | UL 467486C, CSA |
