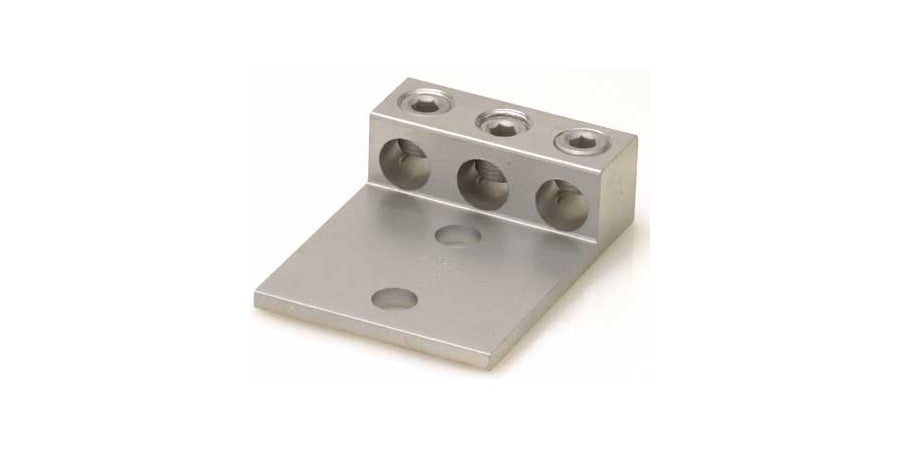

Thomas & Betts ADR11-32 | Mechanical Lug, 3 Conductor, Aluminum...
Description
Description
Blackburn anti-rotational connectors are designed with a rib on the bottom that keeps the connectors from turning, so there's no need to apply excessive torque and there's no danger of loosening connectors. The unique "no-turn" rib provides a secure connection that eliminates the conductor pinching that results from connector movement. The "no-turn" design solves a unique problem for electricians and installers. Larger conductors tend to get damaged in over-torque conditions, and connectors are prone to loosen in applications where there is vibration, such as motor loads.
Specifications
Specifications
Thomas & Betts - ADR11-32 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Mechanical Grounding and Bonding
- Mechanical Lugs
Thomas & Betts - ADR11-32 - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | ADR11-32 |
| Item Description | Mechanical Lug, 3 Conductor, Aluminum Conductor, Tin-Plated, Aluminum, Copper Blackburn anti-rotational connectors are designed with a rib on the bottom that keeps the connectors from turning, so there's no need to apply excessive torque and there's no danger of loosening connectors. The unique "no-turn" rib provides a secure connection that eliminates the conductor pinching that results from connector movement. The "no-turn" design solves a unique problem for electricians and installers. Larger conductors tend to get damaged in over-torque conditions, and connectors are prone to loosen in applications where there is vibration, such as motor loads. |
| UPC | 78378661006 |
| Awg Max | 1/0 |
| Awg Min | 14 |
| Conductor Count | 3 |
| Conductor Entry | Standard, Set-Screw |
| Conductor Material | Aluminum |
| Conductor Type | Cu/Al |
| Finish | Tin-Plated |
| Inspection Hole | No |
| Material | Aluminum, Tin-Plated |
| Number Of Holes | 2 |
| Overall Length | 2-29/32 In. |
| Product Type | Mechanical Lug |
| Screw Type | Hex Socket |
| Screw/Stud Size | 3/8 |
| Special Rating | 600 V |
| Stud Holes | 2 |
| Stud Size | 3/8 In. |
| Tongue Length | 2-5/32 In. |
| Tongue Thickness | 3/16 In. |
| Tongue Type | Straight |
| Tongue Width | 1-31/32 In. |
| Type | Mechanical Terminal |
| Wire Size - Maximum | 1/0 Awg |
| Wire Size - Minimum | 14 Awg |
| Approval | UL 486B, CSA |
