Description

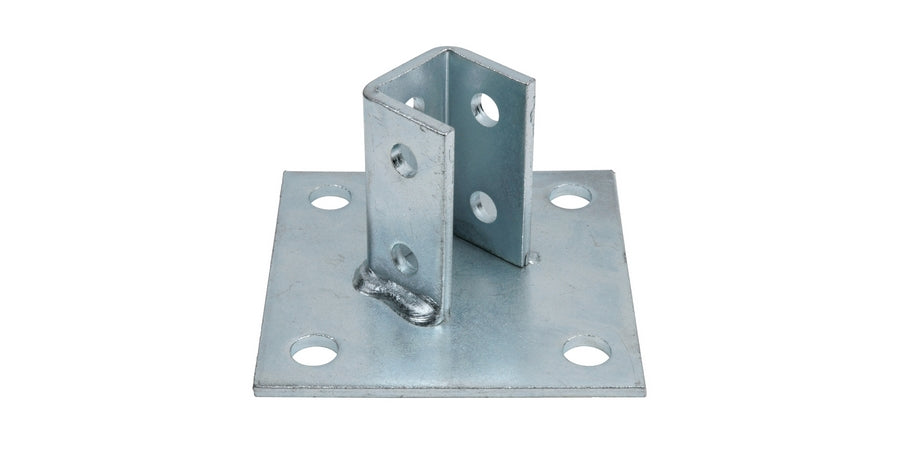

Thomas & Betts AP232EG | Post Base, Number of Holes 10, Steel, SilverGalv; Electro-Galvanized Finish

Connector, Diagonal Post Base, Post Height 3-1/2 Inches, Post Length 1-11/16 Inch, Width 1-5/8 Inch, 4 Holes, Hole Diameter 3/4 Inch, Electro Galvanized Steel.

Specifications

Thomas & Betts - AP232EG - Product Categories

Enclosures and Cable Routing
Conduit and Cable Support
Strut
Strut Fittings and Brackets

Thomas & Betts - AP232EG - Specifications

Brand Name	Thomas & Betts
Manufacturer Part Number	AP232EG
Item Description	Post Base, Number of Holes 10, Steel, SilverGalv; Electro-Galvanized Finish Connector, Diagonal Post Base, Post Height 3-1/2 Inches, Post Length 1-11/16 Inch, Width 1-5/8 Inch, 4 Holes, Hole Diameter 3/4 Inch, Electro Galvanized Steel.
UPC	61601301370
Base Type	Channel Post Inu In
Bracket Angle	45 Degree
Channel Mtg Holes	6
Channel Position	Centered, Offset 45 Deg
Dimensions	6 X 6 In.
Finish	Silvergalv; Electro-Galvanized
Height	3.5 In.
Hole Diameter	3/4 In.
Length	16.7 In.
Material	Steel
Number Of Channels	1
Number Of Holes	10
Pad Mtg Holes	(4) 3/4"
Post Height	3.5 In.
Post Length	1.6875 In.
Product Type	Post Base
Thickness	7/32 In.
Width	1.625 In.

Documents and Downloads

Thomas & Betts AP232EG Data Sheet
