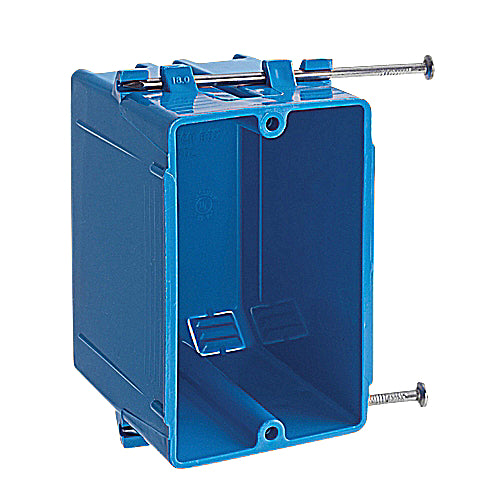

Thomas & Betts B118A | Blue Polycarbonate Outlet Box
Regular price
$2.70
Unit price
Brand: Thomas & Betts
|
SKU:
800891
Regular price
$2.70
Unit price
Description
Description
Thomas and Betts B118A | Blue Polycarbonate Outlet Box
One-Gang Nail-On New Work Outlet Box, Volume 18 Cubic Inches, Length 3-3/4 Inches, Width 2-1/4 Inches, Depth 2-7/8 Inches, Color Blue, Material PVC, Mounting Means Captive Nails
Specifications
Specifications
Thomas and Betts - B118A - North American Specifications
| UNSPSC | 39121308 Outlet box |
|---|---|
| IGCC | 4433 Outlet box |
| Brand Name | Carlon / Nutek |
| Type | Outlet Boxes |
| Special Features | PVC construction for easier installation, greater performance and lower installation cost |
| Application | Designed and listed for use with non-metallic sheathed cable in accordance with Article 314 of the National Electrical Code |
| Standard | UL E11461 |
| Material | PVC |
| Color | Blue |
| Cubic Capacity | 18 cu in |
Thomas and Betts - B118A - European Specifications
| ETIM | EC002601 Box/housing for built-in mounting in the wall/ceiling |
|---|---|
| Mounting method | Other |
| Shape | Rectangular |
| Construction type | Device connection box (round/square) |
| Equipped with | None |
| Length | 95.25mm |
| Width | 57.15mm |
| Depth | 73.025-73.025mm |
| Mounting switching equipment | Screwing |
| With screws | N |
| Pipe locking | N |
| Pipe locking optional | N |
Thomas and Betts - B118A - Package Information
| Outer Quantity | 100 |
|---|---|
| Outer Dimensions (inches) | 21.5x14.25x9.5 |
| Weight Uom | 18 lbs. per 100 |
