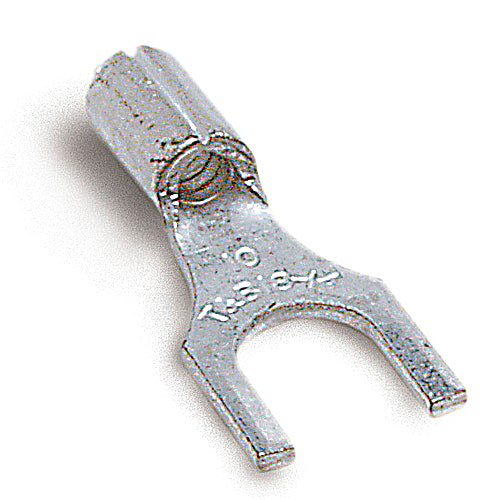

Thomas and Betts B14-14F | Non-Insulated Fork Terminals, Copper Tin Plated, 18 to 14 AWG
Non-Insulated Fork Terminal, Length .90 Inches, Width .44 Inches, Bolt Hole 1/4 Inch, Wire Range 18-14 AWG, Copper, Tin Plated
Thomas and Betts - B14-14F - Features
- These non-insulated fork terminals are made of electrolytic copper for high conductivity.
- They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
- Serrated barrel increases grip on wire.
- Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
Specifications
Specifications
Thomas and Betts - B14-14F - North American Specifications
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| IGCC | 4603 Electrical terminals |
| Brand Name | Sta-Kon |
| Type | Non-Insulated Fork Terminal |
| Special Features | These non-insulated fork terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire. |
| Standard | UL E9809 |
| Wire Size | 18-14 AWG |
| Voltage Rating | 600 V |
| Material | Copper |
| Color | Metallic |
Thomas and Betts - B14-14F - European Specifications
| ETIM | EC001052 Solderless copper terminals for copper conductors |
|---|---|
| Flange shape | Fork shape |
| Insulation | None |
| Reel packaging | N |
| AWG-range | 18-14 |
| Material | Copper |
| Surface protection | Tinned |
Thomas and Betts - B14-14F - Package Information
| Inner Quantity | 100 |
|---|---|
| Inner Dimensions (inches) | 2.63x1.63x3.5 |
| Outer Quantity | 500 |
| Outer Dimensions (inches) | 3.25x2.63x1.63 |
| Weight Uom | 0.31 lbs. per 100 |
