Brand: Thomas & Betts
|
SKU:
638976

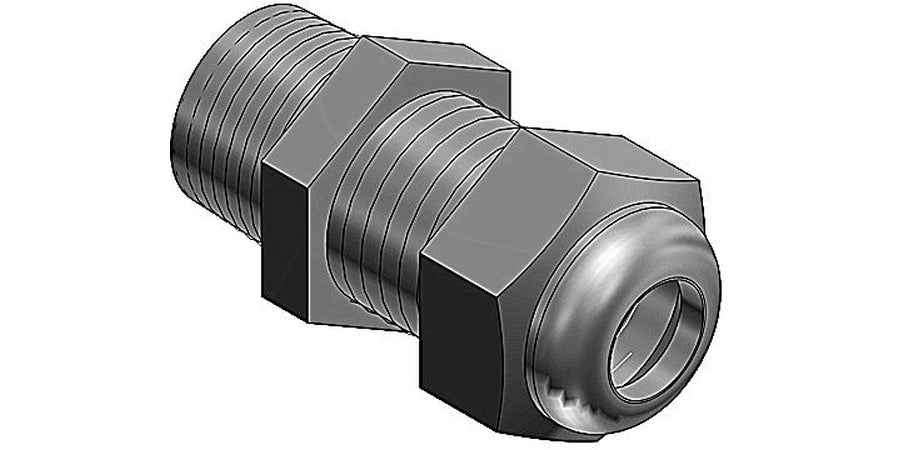

Thomas & Betts CC-NPT-38-G | Cable Gland, Nylon Body, 3/8 in., 0.197 in., 0.394 in., Straight, NPT Thread
Regular price
$7.94
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts CC-NPT-38-G | Cable Gland, Nylon Body, 3/8 in., ...
Regular price
$7.94
Unit price
Description
Description
Thomas & Betts CC-NPT-38-G | Cable Gland, Nylon Body, 3/8 in., 0.197 in., 0.394 in., Straight, NPT Thread
Nylon cable glands have a sturdy cable sealing mechanism that results in superior strain relief. The compact size ensures quick and easy installation in cramped spaces. The non-metallic construction provides excellent corrosion-, chemical- and impact-resistance.
Specifications
Specifications
Thomas & Betts - CC-NPT-38-G - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Cord Grips
Thomas & Betts - CC-NPT-38-G - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | CC-NPT-38-G |
| Item Description | Cable Gland, Nylon Body, 3/8 in., 0.197 in., 0.394 in., Straight, NPT Thread Nylon cable glands have a sturdy cable sealing mechanism that results in superior strain relief. The compact size ensures quick and easy installation in cramped spaces. The non-metallic construction provides excellent corrosion-, chemical- and impact-resistance. |
| UPC | 78621007817 |
| Body Material | Nylon |
| Cable Outside Diameter Maximum | 0.394 In. |
| Cable Outside Diameter Minimum | 0.197 In. |
| Cable Range | 0.197 To 0.394 In. |
| Color | Gray |
| Connection Rating | Liquid-Tight |
| Connection Type | Npt |
| Connector Angle | Straight |
| Hub Size | 3/8 In. |
| Ip Rating | Ip68 |
| Includes Pull Tape | No |
| Nema Rating | 4 |
| Od - Min-Max Average | 0.30 In |
| Product Type | Cable Gland |
| Size | 3/8 In. |
| Special Rating | Liquid-Tight, Ip68, Nema 4 |
| Temperature Rating | -30 To +80 C |
| Thread Size | L: 0.59 In. |
| Thread Type | Npt |
| Approval | UL, CSA |
