Brand: Thomas & Betts
|
SKU:
633265

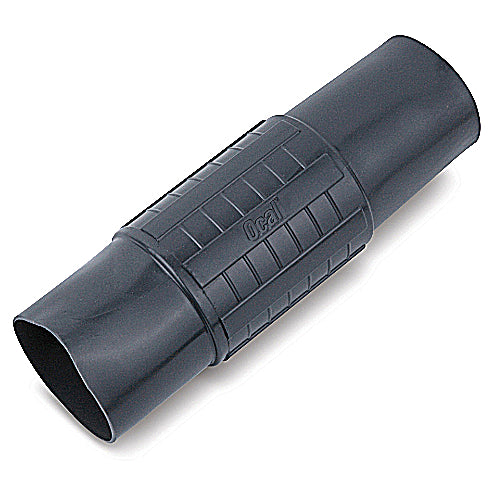

Thomas & Betts CPL1/2-G | Coupling, 1/2" Gray PVC Coated Steel
Regular price
$25.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts CPL1/2-G | Coupling, 1/2" Gray PVC Coated S...
Regular price
$25.85
Unit price
Brand: Thomas & Betts
|
SKU:
633265
Regular price
$25.85
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts CPL1/2-G | Coupling, 1/2" Gray PVC Coated Steel
PVC Coated Conduit Coupling, 1/2 Inch/16 Metric Coupling Size, 1.50 Inch/38.10 Millimeters Minimum Length of Metal, 3.75 Inch/95.25 Millimeters Total Minimum Length Including Sleeve, Straight Threads, Pressure Sealing Sleeves, Blue Urethane Coating on Interior and Threads, Galvanized Rigid Steel, Gray
Thomas and Betts - CPL1/2-G - Features
- Nominal .002 inch (2 mil) blue urethane coating on interior and exterior
- Minimum .040 inch (40 mil) PVC coating is bonded to the exterior
- Straight threads (NPS)
- Molded ribs on outer coating for easy installation, up to and including 4 inch
- Pressure sealing sleeves protect your connection
Specifications
Specifications
Thomas and Betts - CPL1/2-G - North American Specifications
| UNSPSC | 39131707 Electrical conduit coupling |
|---|---|
| IGCC | 5548 Electrical conduit coupling |
| Brand Name | Ocal |
| Type | Conduit Coupling |
| Special Features | Pressure-Sealing Sleeves Protect Your Connection |
| Application | Corrosion-Protected Connections for Conduit Sections |
| Trade Size | 1/2 in ; 16 mm |
| Length | 3.75 in ; 95.25 mm |
| Material | Steel |
| Color | Gray |
Thomas and Betts - CPL1/2-G - European Specifications
| ETIM | EC000939 Coupler for installation tubes |
|---|---|
| Material | Metal |
| Material quality | Steel |
| Surface protection | Continuously galvanized |
| Model | Thread |
| For nominal tube diameter | 16mm |
| Two piece | N |
| With inspection opening and cover | N |
Thomas and Betts - CPL1/2-G - Package Information
| Inner Dimensions (inches) | xx |
|---|---|
| Outer Quantity | 100 |
| Outer Dimensions (inches) | 15.2x13.65x8.45 |
| Weight Uom | 0.16 lbs. Each |
