Thomas & Betts CPL11/4-G | Coupling, 1-1/4" Gray PVC Coate...
Regular price
$33.60
Unit price
Brand: Thomas & Betts
|
SKU:
633268
Regular price
$33.60
Unit price
Description
Description

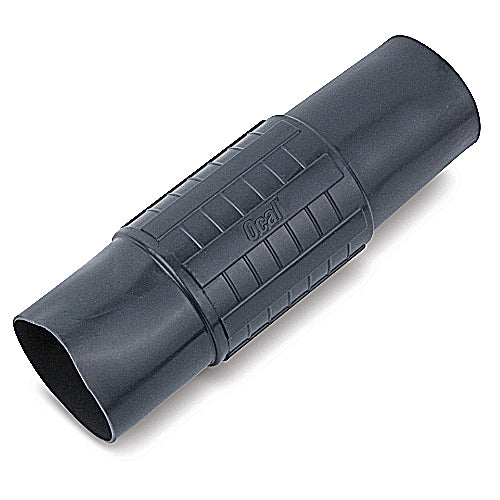

Thomas and Betts CPL11/4-G | Coupling, 1-1/4" Gray PVC Coated Steel
PVC Coated Conduit Coupling, 1-1/4 Inch/35 Metric Coupling Size, 1.91 Inch/48.41 Millimeters Minimum Length of Metal, 5.50 Inch/139.70 Millimeters Total Minimum Length Including Sleeve, Straight Threads, Pressure Sealing Sleeves, Blue Urethane Coating on Interior and Threads, Galvanized Rigid Steel, Gray
Thomas and Betts - CPL11/4-G - Features
- Nominal .002 inch (2 mil) blue urethane coating on interior and exterior
- Minimum .040 inch (40 mil) PVC coating is bonded to the exterior
- Straight threads (NPS)
- Molded ribs on outer coating for easy installation, up to and including 4 inch
- Pressure sealing sleeves protect your connection
Specifications
Specifications
Thomas and Betts - CPL11/4-G - North American Specifications
| UNSPSC | 39131707 Electrical conduit coupling |
|---|---|
| IGCC | 5548 Electrical conduit coupling |
| Brand Name | Ocal |
| Type | Conduit Coupling |
| Special Features | Pressure-Sealing Sleeves Protect Your Connection |
| Application | Corrosion-Protected Connections for Conduit Sections |
| Trade Size | 1-1/4 in ; 35 mm |
| Length | 5.5 in ; 139.7 mm |
| Material | Steel |
| Color | Gray |
Thomas and Betts - CPL11/4-G - European Specifications
| ETIM | EC000939 Coupler for installation tubes |
|---|---|
| Material | Metal |
| Material quality | Steel |
| Surface protection | Continuously galvanized |
| Model | Thread |
| For nominal tube diameter | 35mm |
| Two piece | N |
| With inspection opening and cover | N |
Thomas and Betts - CPL11/4-G - Package Information
| Outer Quantity | 42 |
|---|---|
| Outer Dimensions (inches) | 15.5x13.65x8.55 |
| Weight Uom | 0.53 lbs. Each |
