Brand: Thomas & Betts
|
SKU:
829168

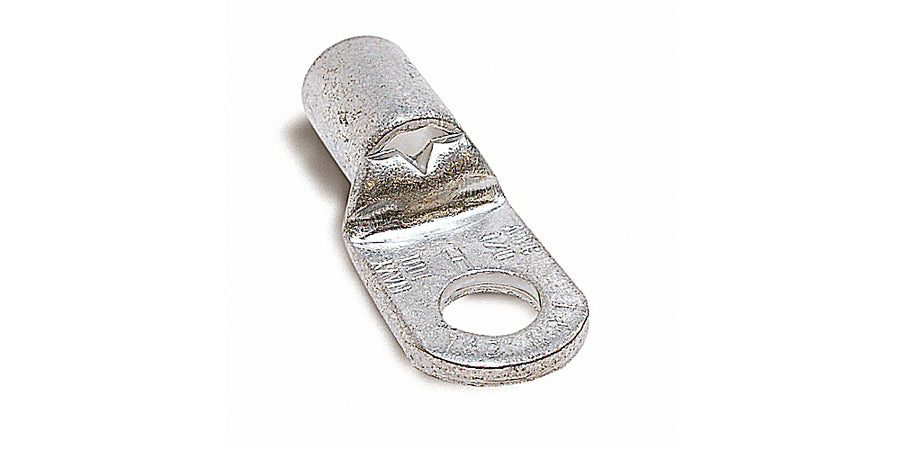

Thomas & Betts E10711 | Ring Terminal, 1/4 in. Stud, 6 AWG Maximum, Non-Insulated, Copper, Tin-Plated Contact
Regular price
$2.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts E10711 | Ring Terminal, 1/4 in. Stud, 6 AWG Maxi...
Regular price
$2.70
Unit price
Description
Description
Thomas & Betts E10711 | Ring Terminal, 1/4 in. Stud, 6 AWG Maximum, Non-Insulated, Copper, Tin-Plated Contact
Specifications
Specifications
Thomas & Betts - E10711 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Terminals
Thomas & Betts - E10711 - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | E10711 |
| Item Description | Ring Terminal, 1/4 in. Stud, 6 AWG Maximum, Non-Insulated, Copper, Tin-Plated Contact |
| UPC | 78621082961 |
| Barrel Size | L: 0.72 In. |
| Barrel Type | Tubular |
| Center Spacing | 0.27 In. |
| Conductor Max | 6 An |
| Conductor Min | 6 An |
| Connection Type | Crimp |
| Contact Finish | Tin-Plated |
| Installation Tool | Erg 4005, Erg 4008 Crimping Tool |
| Insulation Coverage | Non-Insulated |
| Insulation | Non-Insulated |
| Length | 1.26 In. |
| Material | Copper |
| Number Of Mounting Holes | 1 |
| Overall Length | 1.26 In. |
| Overall Width | 0.49 In. |
| Package Quantity | 200/Pack |
| Product Type | Large Ring Terminal |
| Seam Style | Tubular Barrel |
| Stud Size | 1/4 In. |
| Temperature Rating | 150 C |
| Terminal Type | Large Ring Lug |
| Tongue Size | Wxt: 0.49 X 0.04 In. |
| Voltage Rating | 600 V |
| Width | 0.49 In. |
| Wire Size - Maximum | 6 Awg |
| Approval | UL 486AB, CSA C22.2 |
