Thomas & Betts E971FB | PVC Flush Round Concrete Floor Box
Regular price
$148.76
Unit price
Brand: Thomas & Betts
|
SKU:
949287
Regular price
$148.76
Unit price
Description
Description

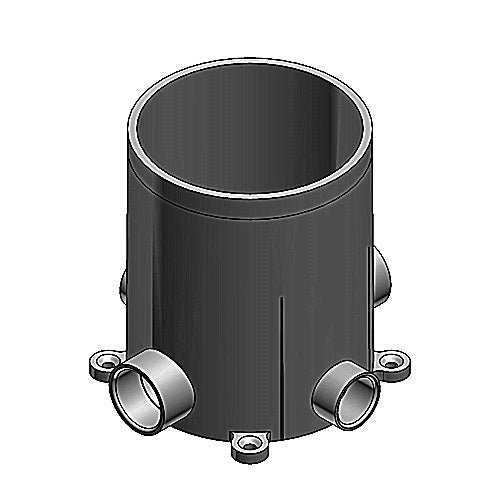

Thomas and Betts E971FB | PVC Flush Round Concrete Floor Box

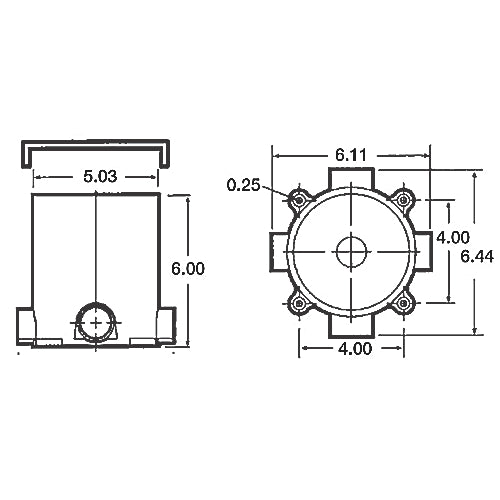

Round Floor Box, 90 Cubic Inches, 5.03 Inch Diameter, 5.40 Inch Depth, Hub Size 3/4 Inch and 1 Inch, Reducer Plugs 1/2 Inch and 3/4 Inch, Non-Metallic
Thomas and Betts - E971FB - Features
- Three way versatility for power, data, and communications.
- Y-connector (E972Y) allows you to feed parallel runs of 3/4 Inch conduit or to feed in/out from the same side for increased wiring flexibility and faster installation.
- PVC molded ports and reducer plugs included.
- Accepts 1/2 Inch, 3/4 Inch and 1 Inch conduit, tubing or raceway.
- UL scrub water tested, approved for all types of finish flooring.
Specifications
Specifications
Thomas and Betts - E971FB - North American Specifications
| UNSPSC | 39121307 Floor boxes |
|---|---|
| IGCC | 4432 Floor boxes |
| Brand Name | Steel City |
| Sub Brand | Carlon |
| Type | Round Floor Boxes, Covers & Accessories |
| Special Features | Three way versatility for power, data, and communications. |
| Application | Suitable for any on grade/below grade application; concrete or wood sub-floor construction approved. |
| Standard | UL E11461 |
| Material | PVC |
| Cable Entry | Hubs |
| Cubic Capacity | 90 cu in |
Thomas and Betts - E971FB - European Specifications
| ETIM | EC000024 Installation box for underfloor-installation |
|---|---|
| Cover model | Round |
| Suitable for wet cleaning | N |
| Suitable for hollow floor | Y |
| Material | Other |
| With opening carpeting | N |
| Min. built-in depth | 5.4mm |
| Colour | Other |
| Outer diameter | 127.762mm |
Thomas and Betts - E971FB - Package Information
| Outer Quantity | 10 |
|---|---|
| Outer Dimensions (inches) | 14.5x13.9x14.7 |
| Weight Uom | 1.35 lbs. Each |
