Brand: Thomas & Betts
|
SKU:
633648

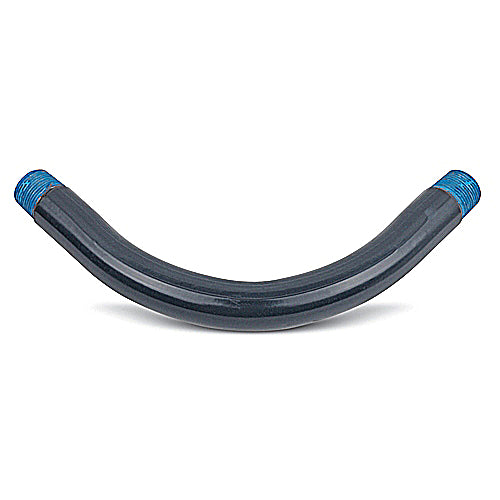

Thomas & Betts ELL1/2-G | Standard-Radius Elbow, 90 Degree, Steel, 1/2 in.
Regular price
$54.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts ELL1/2-G | Standard-Radius Elbow, 90 Degree, Ste...
Regular price
$54.82
Unit price
Brand: Thomas & Betts
|
SKU:
633648
Regular price
$54.82
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts ELL1/2-G | Standard-Radius Elbow, 90 Degree, Steel, 1/2 in.
Standard Radius Elbow, 40 Mil PVC Coated, Pipe Size 1/2 Inch/16 Metric, Angle 90 Degrees, Radius 4 Inch/101.60 Millimeters, Offset 6 Inch/152.40 Millimeters, Straight End 2 Inch/50.80 Millimeters, Unbent Length 10.28 Inch/261.19 Millimeters, Hot-Dip Galvanized Rigid Steel, Gray
Thomas and Betts - ELL1/2-G - Features
- A minimum .040 inch (40 mil) PVC coating on the exterior.
- A nominal .002 inch (2 mil) blue urethane on the interior.
- Ocal-Blue standard radius elbows are factory bent to reduce the time and wasted materials that can result from field bending.
- Color coded thread protectors on each end.
Specifications
Specifications
Thomas and Betts - ELL1/2-G - North American Specifications
| UNSPSC | 39131717 Electrical conduit elbow |
|---|---|
| IGCC | 5746 Electrical conduit elbow |
| Brand Name | Ocal |
| Type | Conduit Elbow - Standard Radius |
| Special Features | Color-Coded Thread Protectors for Easy Identification of Conduit Size |
| Application | To Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting |
| Standard | cULus E46453, CSA |
| Material | Steel |
| Color | Gray |
| Finish | Hot-Dipped Galvanized |
| Length | 10.28 in ; 261.19 mm |
| Trade Size | 1/2 in ; 16 mm |
Thomas and Betts - ELL1/2-G - European Specifications
| ETIM | EC001493 Bend for cable protection tubes |
|---|---|
| Material | Metal |
| Material quality | Steel |
| Surface protection | Hot dip galvanized |
| Colour | Other |
| Model | Rigid |
| Shape | Outer - and inner side plain |
| Inner diameter | 16mm |
| Angle of bow | 90° |
Thomas and Betts - ELL1/2-G - Package Information
| Inner Quantity | 1 |
|---|---|
| Outer Quantity | 30 |
| Outer Dimensions (inches) | 14.5x8x8 |
| Weight Uom | 0.85 lbs. Each |
