Brand: Thomas & Betts
|
SKU:
633662

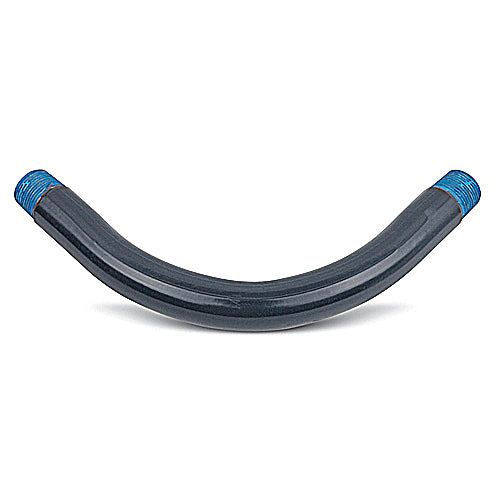

Thomas & Betts ELL3/4-G | Ocal Dark Gray 40 mil PVC-Coated Hot-Dip Galvanized Steel 90-Degree Rigid Conduit Elbow, 3/4 in.
Regular price
$56.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts ELL3/4-G | Ocal Dark Gray 40 mil PVC-Coated Hot-...
Regular price
$56.86
Unit price
Brand: Thomas & Betts
|
SKU:
633662
Regular price
$56.86
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts ELL3/4-G | Ocal Dark Gray 40 mil PVC-Coated Hot-Dip Galvanized Steel 90-Degree Rigid Conduit Elbow, 3/4 in.
Standard Radius Elbow, 40 Mil PVC Coated, Pipe Size 3/4 Inch/21 Metric, Angle 90 Degrees, Radius 4-1/2 Inch/114.30 Millimeters, Offset 6-1/2 Inch/165.10 Millimeters, Straight End 2 Inch/50.80 Millimeters, Unbent Length 11.07 Inch/281.14 Millimeters, Hot-Dip Galvanized Rigid Steel, Gray
Thomas and Betts - ELL3/4-G - Features
- A minimum .040 inch (40 mil) PVC coating on the exterior.
- A nominal .002 inch (2 mil) blue urethane on the interior.
- Ocal-Blue standard radius elbows are factory bent to reduce the time and wasted materials that can result from field bending.
- Color coded thread protectors on each end.
Specifications
Specifications
Thomas and Betts - ELL3/4-G - North American Specifications
| UNSPSC | 39131717 Electrical conduit elbow |
|---|---|
| IGCC | 5746 Electrical conduit elbow |
| Brand Name | Ocal |
| Type | Conduit Elbow - Standard Radius |
| Special Features | Color-Coded Thread Protectors for Easy Identification of Conduit Size |
| Application | To Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting |
| Standard | cULus E46453, CSA |
| Material | Steel |
| Color | Gray |
| Finish | Hot-Dipped Galvanized |
| Length | 11.07 in ; 281.14 mm |
| Trade Size | 3/4 in ; 21 mm |
Thomas and Betts - ELL3/4-G - European Specifications
| ETIM | EC001493 Bend for cable protection tubes |
|---|---|
| Material | Metal |
| Material quality | Steel |
| Surface protection | Hot dip galvanized |
| Colour | Other |
| Model | Rigid |
| Shape | Outer - and inner side plain |
| Inner diameter | 21mm |
| Angle of bow | 90° |
Thomas and Betts - ELL3/4-G - Package Information
| Inner Quantity | 1 |
|---|---|
| Outer Quantity | 20 |
| Outer Dimensions (inches) | 13.65x8.3x8.5 |
| Weight Uom | 1.26 lbs. Each |
