Thomas & Betts F2041 | Insulated Ferrule
Regular price
$0.70
Unit price
Brand: Thomas & Betts
|
SKU:
458005
Regular price
$0.70
Unit price
Description
Description

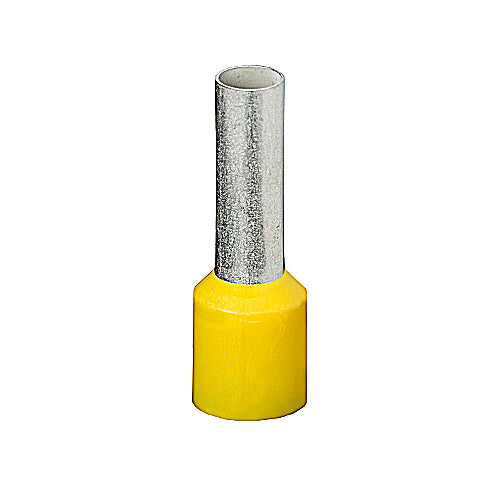

Thomas and Betts F2041 | Insulated Ferrule

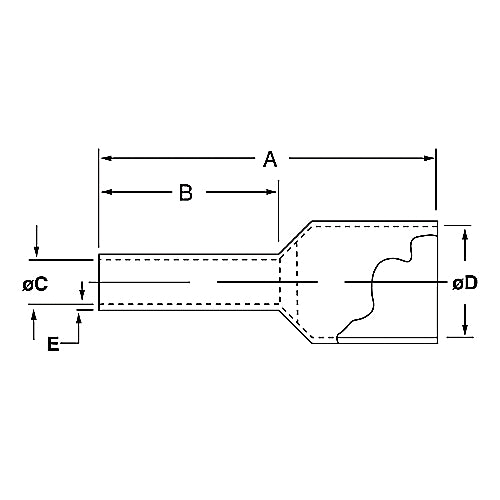

Polypropylene-Insulated Ferrule, Total Length .787 Inches/20mm, Pin Length .472 Inches/12mm, Pin Diameter .142 Inches/3.6mm, Base Diameter .244 Inches/6.2mm, Wire Range 10 AWG/6.00mm2, Color Yellow, Copper, Tin Plated
Thomas and Betts - F2041 - Features
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
- Application Tools: FER9500, FER9501, ERG4
Specifications
Specifications
Thomas and Betts - F2041 - North American Specifications
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| IGCC | 4603 Electrical terminals |
| Brand Name | Sta-Kon |
| Type | Polypropylene Insulated Ferrule |
| Special Features | Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks. |
| Standard | UL E489056 |
| Wire Size | 10 AWG |
| Material | Copper |
| Color | Yellow |
Thomas and Betts - F2041 - European Specifications
| ETIM | EC000005 Cable end sleeve |
|---|---|
| Construction type | Standard |
| Nominal cross section | 6mm² |
| Insulated | Y |
| Insulation material | Polypropylene |
| Colour | Yellow |
| Material | Copper |
| Surface protection | Tinned |
| With identification flag | N |
| Reel packaging | N |
Thomas and Betts - F2041 - Package Information
| Inner Quantity | 100 |
|---|---|
| Outer Quantity | 1000 |
| Outer Dimensions (inches) | 6.4x4.4x3.8 |
| Weight Uom | 1.25 lbs. per 1000 |
