Brand: Thomas & Betts
|
SKU:
536932

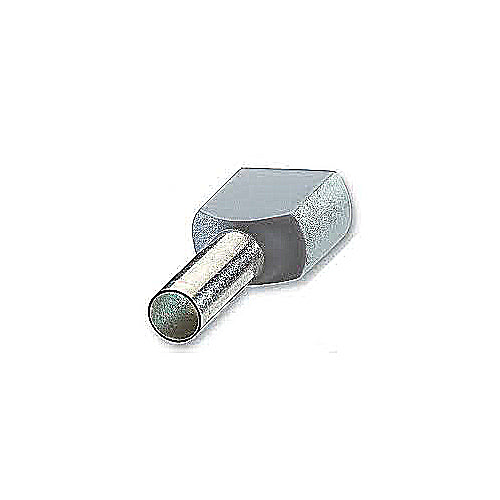

Thomas & Betts F8001 | Sta-Kon, Twin Ferrule, Copper, Tin-Plated, Polypropylene Insulation, 18 AWG, Gray, 0.591 in.
Regular price
$495.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts F8001 | Sta-Kon, Twin Ferrule, Copper, Tin-Plate...
Regular price
$495.88
Unit price
Brand: Thomas & Betts
|
SKU:
536932
Regular price
$495.88
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts F8001 | Sta-Kon, Twin Ferrule, Copper, Tin-Plated, Polypropylene Insulation, 18 AWG, Gray, 0.591 in.
Polypropylene Insulated Twin Ferrule, Length .591 Inches/15mm, Pin Length .315 Inches/8mm, Pin Diameter .071 Inches/1.8mm, Base Diameter .201 Inches/5.1mm, Conductor Range 2x18 AWG/2x0.75mm2, Color Gray, Copper, Tin Plated
Thomas and Betts - F8001 - Features
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
- Application Tools: T3
Specifications
Specifications
Thomas and Betts - F8001 - North American Specifications
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| IGCC | 4603 Electrical terminals |
| Brand Name | Sta-Kon |
| Type | Polypropylene Insulated Twin Ferrule |
| Special Features | Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks. |
| Standard | UL E489056 |
| Wire Size | 2x18 AWG |
| Material | Copper |
| Color | Gray |
Thomas and Betts - F8001 - European Specifications
| ETIM | EC000005 Cable end sleeve |
|---|---|
| Construction type | Twin cable end sleeve |
| Nominal cross section | 0.75mm² |
| Insulated | Y |
| Insulation material | Polypropylene |
| Colour | Grey |
| Material | Copper |
| Surface protection | Tinned |
| With identification flag | N |
| Reel packaging | N |
Thomas and Betts - F8001 - Package Information
| Inner Quantity | 500 |
|---|---|
| Outer Quantity | 5000 |
| Weight Uom | 0.63 lbs. per 1000 |
