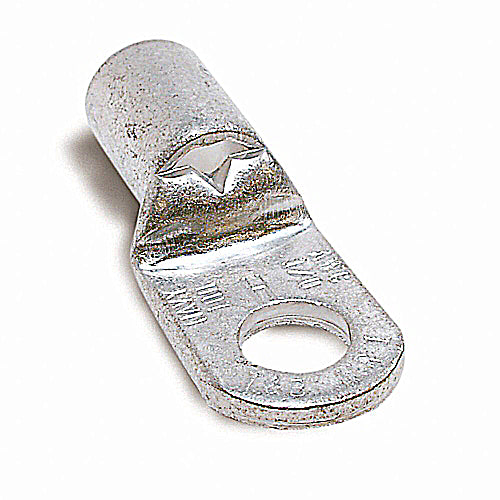

Thomas & Betts G2-516 | Ring Terminal
Regular price
$118.91
Unit price
Brand: Thomas & Betts
|
SKU:
631420-PK
Regular price
$118.91
Unit price
Description
Description
Thomas and Betts G2-516 | Ring Terminal
Non-Insulated Tubular Ring Terminal, Length 1.59 Inches, Width .69 Inches, Bolt Hole 5/16 Inch, Wire Range 2/2AN, Copper, Tin Plated
Thomas and Betts - G2-516 - Features
- These non-insulated ring terminals are made of electrolytic copper for high conductivity.
- They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
- Application Tools: WT115A, TBM6, TBM6S, WT3185
Specifications
Specifications
Thomas and Betts - G2-516 - North American Specifications
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| IGCC | 4603 Electrical terminals |
| Brand Name | Sta-Kon |
| Type | Non-Insulated Ring Terminal |
| Special Features | These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). |
| Standard | UL E9809 |
| Wire Size | 2 AWG |
| Voltage Rating | 600 V |
| Material | Copper |
| Color | Metallic |
Thomas and Betts - G2-516 - European Specifications
| ETIM | EC001051 Tube cable lug for copper conductors |
|---|---|
| Connecting angle | Straight |
| Slender flange model | N |
| Insulated | N |
| With sight-hole | Y |
| Material | Copper |
| Surface protection | Tinned |
| Number of fixing holes | 1 |
Thomas and Betts - G2-516 - Package Information
| Inner Quantity | 10 |
|---|---|
| Inner Dimensions (inches) | 2.09x1.1x2.9 |
| Outer Quantity | 100 |
| Outer Dimensions (inches) | 10.5x8.8x8.5 |
| Weight Uom | 2.5 lbs. per 100 |
