Brand: Thomas & Betts
|
SKU:
TT50F

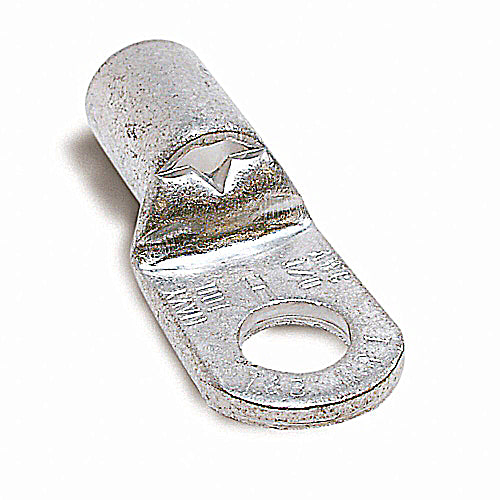

Thomas & Betts G972 | Ring Terminal Non-Insulated 2 AWG 5/16" Stud Rohs
Regular price
$4.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts G972 | Ring Terminal Non-Insulated 2 AWG 5/16&qu...
Regular price
$4.06
Unit price
Description
Description
Thomas and Betts G972 | Ring Terminal Non-Insulated 2 AWG 5/16" Stud Rohs
Non-Insulated Tubular Ring Terminal, Length 1.59 Inches, Width .69 Inches, Bolt Hole 5/16 Inch, Wire Range 2/2AN, Copper, Tin Plated, 100 Pack
Thomas and Betts - G972 - Features
- These non-insulated ring terminals are made of electrolytic copper for high conductivity.
- They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
- Application Tools: WT115A, TBM6, TBM6S, WT3185
Specifications
Specifications
Thomas and Betts - G972 - North American Specifications
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| IGCC | 4603 Electrical terminals |
| Brand Name | Sta-Kon |
| Type | Non-Insulated Ring Terminal |
| Special Features | These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). |
| Standard | UL E9809 |
| Wire Size | 2 AWG |
| Voltage Rating | 600 V |
| Material | Copper |
| Color | Metallic |
Thomas and Betts - G972 - European Specifications
| ETIM | EC001051 Tube cable lug for copper conductors |
|---|---|
| Connecting angle | Straight |
| Slender flange model | N |
| Insulated | N |
| With sight-hole | Y |
| Material | Copper |
| Surface protection | Tinned |
| Number of fixing holes | 1 |
Thomas and Betts - G972 - Package Information
| Inner Quantity | 100 |
|---|---|
| Inner Dimensions (inches) | 5x4.5x3.5 |
| Outer Quantity | 1000 |
| Outer Dimensions (inches) | 23.5x11x3.75 |
| Weight Uom | 3.31 lbs. per 100 |
