Brand: Thomas & Betts
|
SKU:
836256

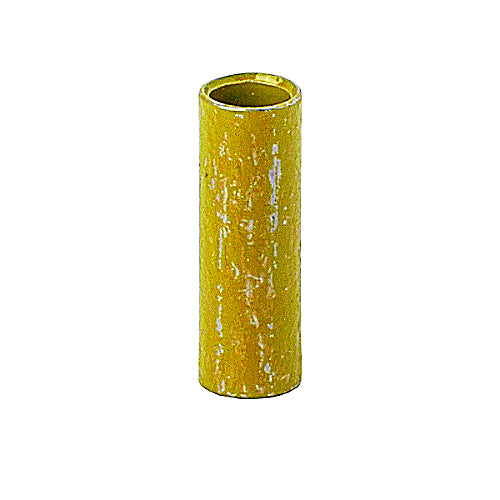

Thomas & Betts GSB187 | Two Piece Inner Sleeve Connector For Hexagonal Range, Color Yellow, Hard Bronze, Tin Plated
Regular price
$2.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts GSB187 | Two Piece Inner Sleeve Connector For He...
Regular price
$2.70
Unit price
Description
Description
Thomas and Betts GSB187 | Two Piece Inner Sleeve Connector For Hexagonal Range, Color Yellow, Hard Bronze, Tin Plated
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .187 Inches/4.75mm, Outer Diameter .227 Inches/5.76mm, Color Yellow, Hard Bronze, Tin Plated
Thomas and Betts - GSB187 - Features
- Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection.
- Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables.
- The sleeves are color coded according to their size.
- Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications.
Specifications
Specifications
Thomas and Betts - GSB187 - North American Specifications
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| IGCC | 4603 Electrical terminals |
| Brand Name | Sta-Kon |
| Sub Brand | Shield-Kon |
| Type | Two-Piece Inner Sleeve Connector |
| Special Features | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications. |
| Material | Hard Bronze |
| Color | Yellow |
Thomas and Betts - GSB187 - European Specifications
| ETIM | EC002650 Connection for screened wires |
|---|---|
| Model | 2-part |
| Sleeve form | Internal sleeve |
| Insulated | N |
| Outer diameter sleeve | 5.76mm |
| Inner diameter sleeve | 4.75mm |
| Sleeve length | 7.9mm |
| Colour code | Yellow |
| Compression shape | Hexagon |
| Reel packaging | N |
Thomas and Betts - GSB187 - Package Information
| Inner Quantity | 1000 |
|---|---|
| Inner Dimensions (inches) | 3.5x3x3 |
| Outer Quantity | 10000 |
| Outer Dimensions (inches) | 16.5x4.3x8.1 |
| Weight Uom | 0.13 lbs. per 100 |
