Brand: Thomas & Betts
|
SKU:
711768

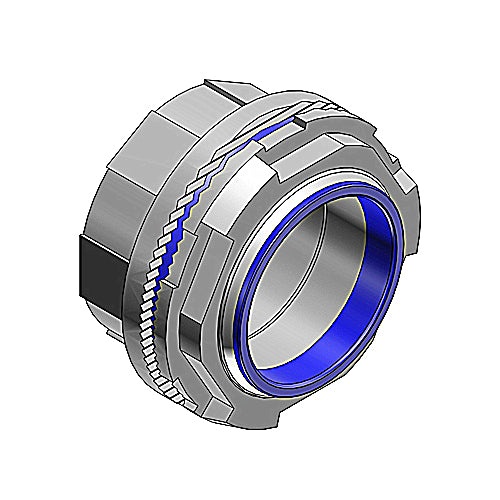

Thomas & Betts H075TB | Rigid/IMC Conduit Fittings, Thermoplastic Insulating Throat, Zinc Hub Connector, 3/4"
Regular price
$18.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts H075TB | Rigid/IMC Conduit Fittings, Thermoplast...
Regular price
$18.85
Unit price
Brand: Thomas & Betts
|
SKU:
711768
Regular price
$18.85
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts H075TB | Rigid/IMC Conduit Fittings, Thermoplastic Insulating Throat, Zinc Hub Connector, 3/4"
3/4 Inch Zinc Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
Thomas and Betts - H075TB - Features
- Suitable for hazardous locations use in Class II, Groups E, F, G & Class III locations per CEC 18-202; 18-252; 18-302; 18-352.
Specifications
Specifications
Thomas and Betts - H075TB - North American Specifications
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| IGCC | 4441 Electrical fittings |
| Brand Name | T&B Rigid Fittings |
| Type | Hub Connector |
| Special Features | Sealing Ring and Groove with Innovative Profile Better Than Standard O-Ring |
| Application | To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure |
| Standard | UL E23018, CSA |
| Size | 3/4 Inch |
| Material | Zinc |
| Temperature Rating | 105 C |
Thomas and Betts - H075TB - European Specifications
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Nominal size in inch | 3/4 inch |
| Model | Straight |
| Revolving thread | N |
| Connection type screw connection to housing | Thread |
| Thread type | NPT |
| Material housing | Zinc die-cast |
Thomas and Betts - H075TB - Package Information
| Inner Quantity | 25 |
|---|---|
| Outer Quantity | 100 |
| Outer Dimensions (inches) | 16.7x5.1x10.6 |
| Weight Uom | 29.63 lbs. per 100 |
