Description
Description

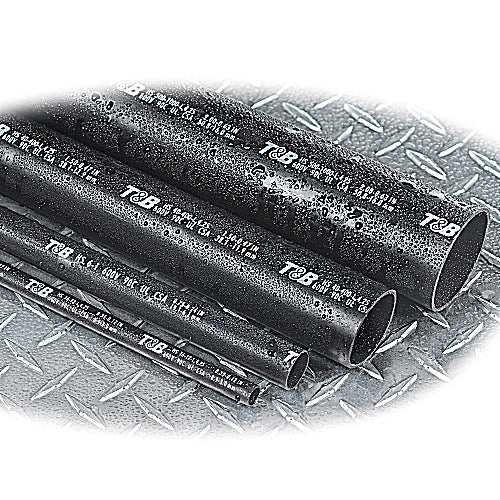

Thomas and Betts HS16-12L | Heat Shrinkable Tube
Heavy-Wall Heat-Shrinkable Tubing for Cable Range 14 - 10 AWG, Expanded Diameter 0.35 Inch, Length 6 Inch, 600 Volt, 90 Degrees Continuous Use, Cross-linked Polyolefin with Thermoplastic Adhesive Liner, Black
Thomas and Betts - HS16-12L - Features
- Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater than that of the cable jacket replaced.
- Withstands severe mechancial requirements of U.R.D., submersible, and direct burial installations.
- Tubing, featuring an internally applied sealant, offers protection against moisture, and may be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials.
Specifications
Specifications
Thomas and Betts - HS16-12L - North American Specifications
| UNSPSC | 39121723 Heat shrinkable tube |
|---|---|
| IGCC | 5073 Heat shrinkable tube |
| Brand Name | Shrink-Kon |
| Type | Heavy-Wall Heat Shrinkable Tubing |
| Special Features | Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater than that of the cable jacket replaced. |
| Voltage Rating | 600 V |
| Length | 6 in ; 152.4 mm |
| Color | Black |
Thomas and Betts - HS16-12L - European Specifications
| ETIM | EC000217 Shrink tubing |
|---|---|
| Type | Heat-shrink |
| Model | Thick-walled |
| Shrink rate | 3:1 |
| Inner diameter before heat-shrink | 8.89mm |
| Inner diameter after heat-shrink | 3.048mm |
| Nominal diameter inch | 3/8 inch |
| Wall thickness after shrinking | 1.778mm |
| Length | 0.1524m |
| Operation temperature | -55-+110°C |
| Colour | Black |
| Material | Polyolefin (PO-X) |
Thomas and Betts - HS16-12L - Package Information
| Outer Quantity | 25 |
|---|---|
| Outer Dimensions (inches) | 6x6x6 |
| Weight Uom | 1.5 lbs. per 100 |
