Brand: Thomas & Betts
|
SKU:
867170
Thomas & Betts HS500-1000L | Heat Shrink Products, Polyolefin, 3:1, Black
Regular price
$67.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts HS500-1000L | Heat Shrink Products, Polyolefin, ...
Regular price
$67.21
Unit price
Brand: Thomas & Betts
|
SKU:
867170
Regular price
$67.21
Unit price
Shipping calculated at checkout.
Description
Description

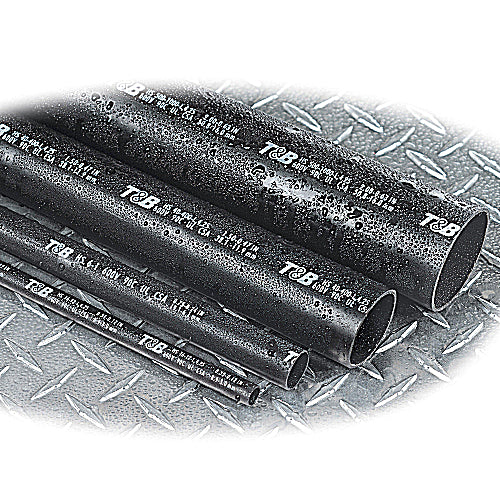

Thomas and Betts HS500-1000L | Heat Shrink Products, Polyolefin, 3:1, Black
Heavy-Wall Heat-Shrinkable Tubing for Cable Range 500-1000 kcmil, Cross-Linked Polyolefin with Thermoplastic Adhesive Liner, Expanded Diameter 2 Inches, Length 15 Inches, 600V, Black
Thomas and Betts - HS500-1000L - Features
- Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater than that of the cable jacket replaced.
- Withstands severe mechancial requirements of U.R.D., submersible, and direct burial installations.
- Tubing, featuring an internally applied sealant, offers protection against moisture, and may be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials.
Specifications
Specifications
Thomas and Betts - HS500-1000L - North American Specifications
| UNSPSC | 39121723 Heat shrinkable tube |
|---|---|
| IGCC | 5073 Heat shrinkable tube |
| Brand Name | Shrink-Kon |
| Type | Heavy-Wall Heat Shrinkable Tubing |
| Special Features | Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater than that of the cable jacket replaced. |
| Voltage Rating | 600 V |
| Length | 15 in ; 381 mm |
| Color | Black |
Thomas and Betts - HS500-1000L - European Specifications
| ETIM | EC000217 Shrink tubing |
|---|---|
| Type | Heat-shrink |
| Model | Thick-walled |
| Shrink rate | 3:1 |
| Inner diameter before heat-shrink | 50.8mm |
| Inner diameter after heat-shrink | 16.002mm |
| Nominal diameter inch | 2 inch |
| Wall thickness after shrinking | 3.556mm |
| Length | 0.381m |
| Operation temperature | -55-+110°C |
| Colour | Black |
| Material | Polyolefin (PO-X) |
Thomas and Betts - HS500-1000L - Package Information
| Outer Quantity | 2 |
|---|---|
| Outer Dimensions (inches) | 13x6x13 |
| Weight Uom | 55 lbs. per 100 |
