Brand: Thomas & Betts
|
SKU:
634007

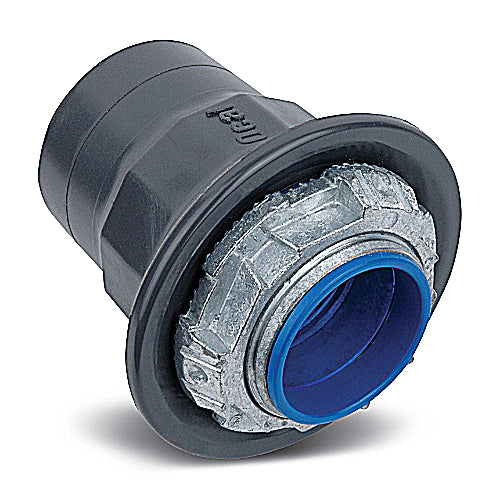

Thomas & Betts HUB11/2-G | Ocal-Blue Conduit Hub, PVC Coated Zinc, Insulated 105°, 1-1/2 in.
Regular price
$197.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts HUB11/2-G | Ocal-Blue Conduit Hub, PVC Coated Zi...
Regular price
$197.08
Unit price
Brand: Thomas & Betts
|
SKU:
634007
Regular price
$197.08
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts HUB11/2-G | Ocal-Blue Conduit Hub, PVC Coated Zinc, Insulated 105°, 1-1/2 in.
PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1-1/2 Inch/41 Metric, Overall Diameter 2.75 Inch/69.85 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.53 Inch/38.86 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
Thomas and Betts - HUB11/2-G - Features
- Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
- A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
- Innovative sealing ring and groove.
- Hexagonal body and locknut design.
- Insulated throat and sharper and deeper teeth.
Specifications
Specifications
Thomas and Betts - HUB11/2-G - North American Specifications
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| IGCC | 4441 Electrical fittings |
| Brand Name | Ocal |
| Type | Hub Connector |
| Special Features | Hexagonal/Splined Body and Locknut Enables Fast and Easy Installation |
| Application | To Positively Bond Conduit to Box or Enclosure |
| Standard | CSA |
| Size | 1-1/2 Inch/41mm |
| Material | PVC Coated Zinc |
| Color | Dark Gray |
| Temperature Rating | 105 C |
Thomas and Betts - HUB11/2-G - European Specifications
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Nominal diameter | 41mm |
| Nominal size in inch | 1 1/2 inch |
| Model | Straight |
| Revolving thread | N |
| Construction type | External thread |
| Material housing | Other |
| Surface protection | Other |
Thomas and Betts - HUB11/2-G - Package Information
| Outer Quantity | 25 |
|---|---|
| Outer Dimensions (inches) | 15.12x13.25x7 |
| Weight Uom | 0.68 lbs. Each |
