Brand: Thomas & Betts
|
SKU:
829704

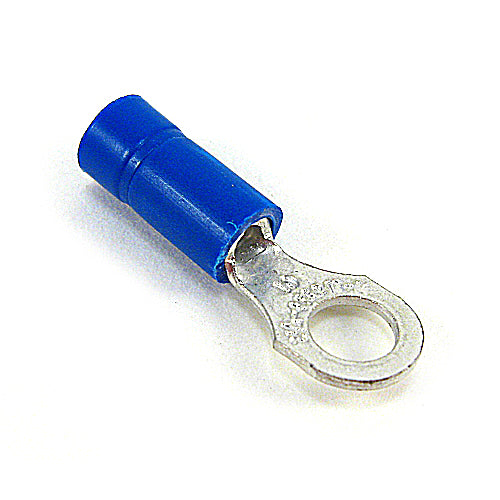

Thomas & Betts KV14-10R-M | Vinyl Insulated Ring Terminal, Bolt Hole 10, Wire Range 16-14 AWG, Blue, Copper, Tin Plated
Regular price
$1.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts KV14-10R-M | Vinyl Insulated Ring Terminal, Bolt...
Regular price
$1.36
Unit price
Description
Description
Thomas and Betts KV14-10R-M | Vinyl Insulated Ring Terminal, Bolt Hole 10, Wire Range 16-14 AWG, Blue, Copper, Tin Plated
Vinyl Insulated Ring Terminal, Length .898 Inches, Width .335 Inches, Bolt Hole 10, Wire Range 16-14 AWG, Color Blue, Copper, Tin Plated
Thomas and Betts - KV14-10R-M - Features
- Molded Funnel Entry Insulator.
- Brazed Seam.
- Internal Barrel Serrations.
- Application Tools: WT112M, CM2000A
Specifications
Specifications
Thomas and Betts - KV14-10R-M - North American Specifications
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| IGCC | 4603 Electrical terminals |
| Brand Name | Sta-Kon |
| Sub Brand | Spec-Kon |
| Type | Vinyl Insulated Ring Terminal |
| Special Features | Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations. |
| Standard | UL E9809 |
| Wire Size | 16-14 AWG |
| Voltage Rating | 600 V |
| Material | Copper |
| Color | Blue |
Thomas and Betts - KV14-10R-M - European Specifications
| ETIM | EC001052 Solderless copper terminals for copper conductors |
|---|---|
| Flange shape | Ring shape |
| Insulation | PVC |
| Colour insulation | Blue |
| Reel packaging | N |
| AWG-range | 16-14 |
| Material | Copper |
| Surface protection | Tinned |
Thomas and Betts - KV14-10R-M - Package Information
| Inner Quantity | 1000 |
|---|---|
| Inner Dimensions (inches) | 5.25x4x3.62 |
| Outer Quantity | 20000 |
| Outer Dimensions (inches) | 11.4x8.3x22.2 |
| Weight Uom | 2.5 lbs. per 1000 |
