Thomas & Betts LB28-4X-G | Ocal Type LB Conduit Body and Cover
Regular price
$157.66
Unit price
Brand: Thomas & Betts
|
SKU:
634053
Regular price
$157.66
Unit price
Description
Description

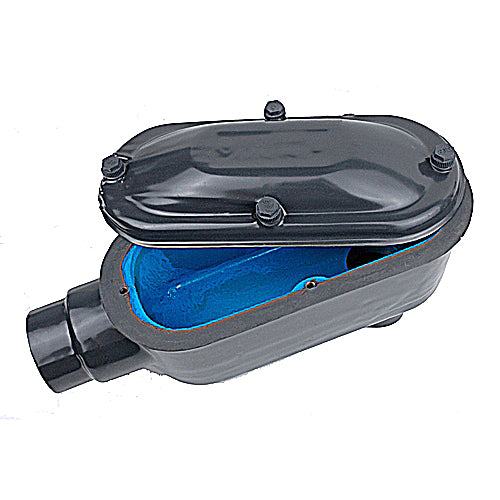

Thomas and Betts LB28-4X-G | Ocal Type LB Conduit Body and Cover
PVC Coated Conduit Body, LB Shape, Form 8 UL-4X, Size 3/4 Inch/21 Metric, Iron, Dark Gray
Thomas and Betts - LB28-4X-G - Features
- Double coated superior corrosion protection, bodies and covers coated inside and out with .002 inch blue urethane, then exterior coated with a minimum of .040 inch PVC.
- PVC coated cast iron conduit body comes with mated cast iron cover, injection molded with an integral O-ring seal and stainless steel encapsulated screws.
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
Specifications
Specifications
Thomas and Betts - LB28-4X-G - North American Specifications
| UNSPSC | 39131708 Electrical conduit fitting body |
|---|---|
| IGCC | 5563 Electrical conduit fitting body |
| Brand Name | Ocal |
| Type | Form 8 UL-4X Conduit Body |
| Special Features | UL Listed Type 4X and NEMA 4X Rating for Excellent Protection In Wash Down Areas, As Well As Harsh Outdoor Environments Exposed to Moisture, Rain, Ice or Snow. |
| Application | Act As Pull Outlets for Conductors Being Installed |
| Standard | cULus E2969, CSA |
| Hub Size | 3/4 in ; 21 mm |
| Form | Form 8 UL-4X |
| Length | 5.56 in |
| Width | 1.56 in |
| Height | 2.44 in |
| Material | Iron |
Thomas and Betts - LB28-4X-G - Package Information
| Outer Quantity | 10 |
|---|---|
| Outer Dimensions (inches) | 13.6x8.8x8.8 |
| Weight Uom | 2.29 lbs. Each |
