Brand: Thomas & Betts | SKU: 602215

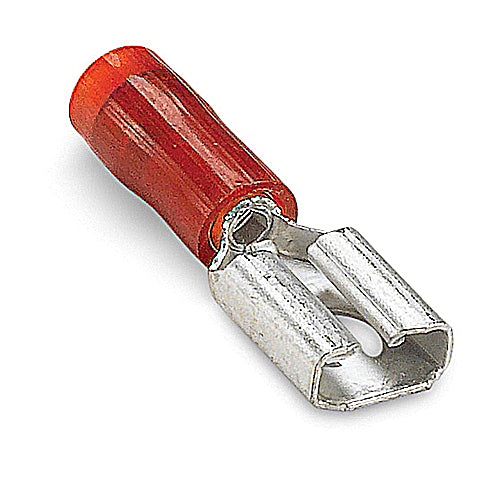

Thomas & Betts RA18-250F | Insulated Female Disconnect

$204.71

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Thomas and Betts RA18-250F | Insulated Female Disconnect

Nylon Insulated Female Disconnect, Length .91 Inches, Width .29 Inches, Maximum Insulation .136, Tab Size .250x.032, Wire Range 22-18, Color Red, Copper, Tin Plated

Thomas and Betts - RA18-250F - Features

Unique construction of the female disconnect offers long-term dependability.
Brazed seam serrated barrel provides maximum tensile strength.
Application Tools: WT145C, WT2000, WT112M, ERG4001

Specifications

Thomas and Betts - RA18-250F - North American Specifications

UNSPSC	39121447 Wire terminal disconnect
IGCC	4667 Wire terminal disconnect
Brand Name	Sta-Kon
Type	Nylon Insulated Female Disconnect
Special Features	Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
Standard	UL E66716
Material	Brass
Finish	Tin Plated
Color	Red
Insulation	Nylon/Polyamide

Thomas and Betts - RA18-250F - European Specifications

ETIM	EC000516 Round or flat plug/receptacle
Insulation	Partially Insulated
Colour insulation	Red
Material insulation	PA
Material	Copper

Thomas and Betts - RA18-250F - Package Information

Inner Quantity	100
Inner Dimensions (inches)	2.5x1.3x3.5
Outer Quantity	500
Outer Dimensions (inches)	12.4x10.4x8.3
Weight Uom	3.13 lbs. per 1000

Documents and Downloads

Thomas and Betts RA18-250F Technical Drawing/Data Sheet US
