Brand: Thomas & Betts
|
SKU:
830801
Thomas & Betts RD10721 | Insulated Ring Terminal, Red, Copper, 600V, Wire Size - Maximum 8AN
Regular price
$5.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts RD10721 | Insulated Ring Terminal, Red, Copper, ...
Regular price
$5.39
Unit price
Description
Description

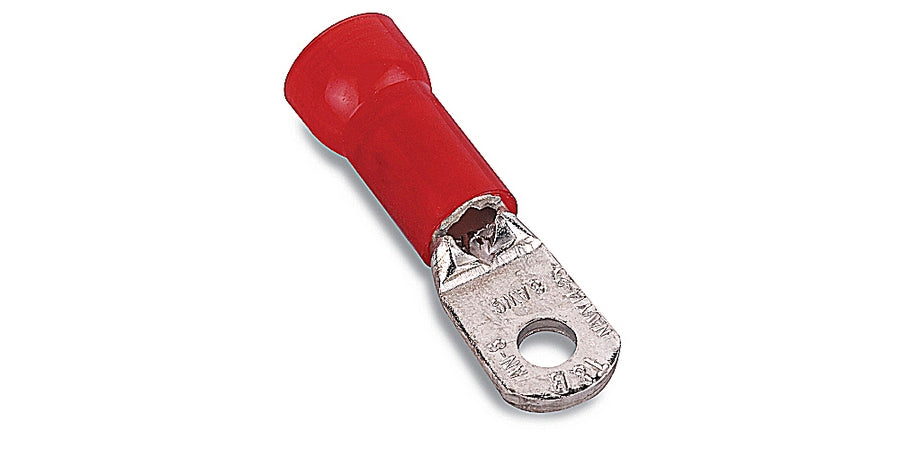

Thomas & Betts RD10721 | Insulated Ring Terminal, Red, Copper, 600V, Wire Size - Maximum 8AN
Nylon Insulated Large Ring Terminal, Length 1.53 Inches, Width .56 Inches, Maximum Insulation .270, Bolt Hole 5/16 Inch, Wire Range 8An, Color Red, Copper, Tin Plated
Specifications
Specifications
Thomas & Betts - RD10721 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Terminals
Thomas & Betts - RD10721 - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | RD10721 |
| Item Description | Insulated Ring Terminal, Red, Copper, 600V, Wire Size - Maximum 8AN Nylon Insulated Large Ring Terminal, Length 1.53 Inches, Width .56 Inches, Maximum Insulation .270, Bolt Hole 5/16 Inch, Wire Range 8An, Color Red, Copper, Tin Plated |
| UPC | 78621083036 |
| Barrel Size | L: 0.91 In. |
| Barrel Type | Serrated |
| Center Spacing | 0.34 In. |
| Color | Red |
| Installation Tool | Erg4007 Crimping Tool |
| Insulation Diameter | 0.27 In. |
| Insulation Material | Nylon |
| Insulation | Nylon Insulated |
| Length | 1.53 In. |
| Material | Copper |
| Number Of Mounting Holes | 1 |
| Product Type | Insulated Ring Terminal |
| Special Feature | Funneled Barrel Entry, Deep Internal Serrations, Brazed Or Overlapping Seams. |
| Temperature Rating | 105 C |
| Tongue Size | Wxt: 0.56 X 0.04 In. |
| Voltage Rating | 600 V |
| Width | 0.56 In. |
| Wire Size - Maximum | 8An |
| Approval | UL, CSA |
