Brand: Thomas & Betts
|
SKU:
830877

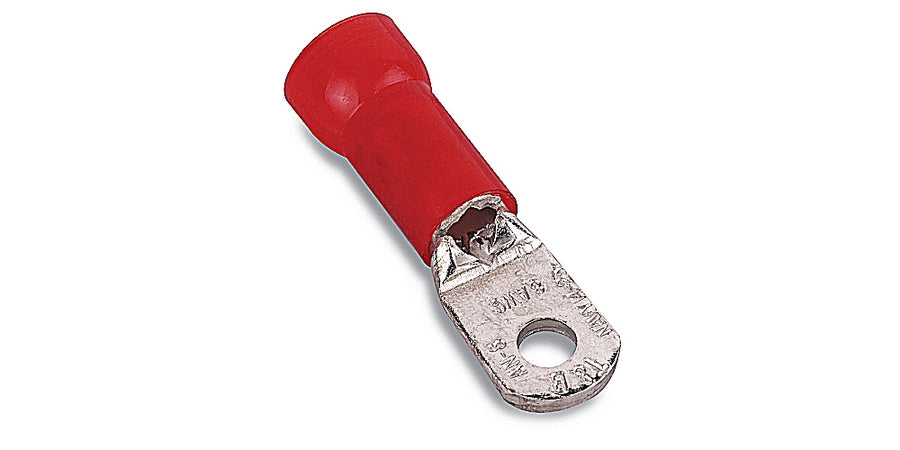

Thomas & Betts RG9731 | Insulated Ring Terminal, Red, Copper, 2.07 in., 600V, Wire Size - Maximum 2N A
Regular price
$9.27
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts RG9731 | Insulated Ring Terminal, Red, Copper, 2...
Regular price
$9.27
Unit price
Brand: Thomas & Betts
|
SKU:
830877
Regular price
$9.27
Unit price
Description
Description
Thomas & Betts RG9731 | Insulated Ring Terminal, Red, Copper, 2.07 in., 600V, Wire Size - Maximum 2N A
Nylon Insulated Large Ring Terminal, Length 2.07 Inches, Width .69 Inches, Maximum Insulation .453, Bolt Hole 3/8 Inch, Wire Range 2An, Color Red, Copper, Tin Plated, 50 Pack
Specifications
Specifications
Thomas & Betts - RG9731 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Terminals
Thomas & Betts - RG9731 - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | RG9731 |
| Item Description | Insulated Ring Terminal, Red, Copper, 2.07 in., 600V, Wire Size - Maximum 2N A Nylon Insulated Large Ring Terminal, Length 2.07 Inches, Width .69 Inches, Maximum Insulation .453, Bolt Hole 3/8 Inch, Wire Range 2An, Color Red, Copper, Tin Plated, 50 Pack |
| UPC | 78621082114 |
| Barrel Type | Funneled Entry |
| Color | Red |
| Installation Tool | Tbm6S Crimping Tool |
| Insulation Color | Red |
| Insulation Diameter | 0.453 In. |
| Insulation Material | Nylon |
| Insulation | Nylon Insulated |
| Length | 2.07 In. |
| Material | Copper |
| Overall Length | 2.07 In. |
| Product Type | Insulated Ring Terminal |
| Special Feature | Funneled Barrel Entry, Deep Internal Serrations, Brazed Or Overlapping Seams. |
| Temperature Rating | 105 C |
| Tongue Size | Wxt: 0.69 X 0.05 In. |
| Voltage Rating | 600 V |
| Width | 0.69 In. |
| Wire Size - Maximum | 2N A |
| Approval | UL 486ABC310, CSA C22.2 |
