Brand: Thomas & Betts
|
SKU:
864942

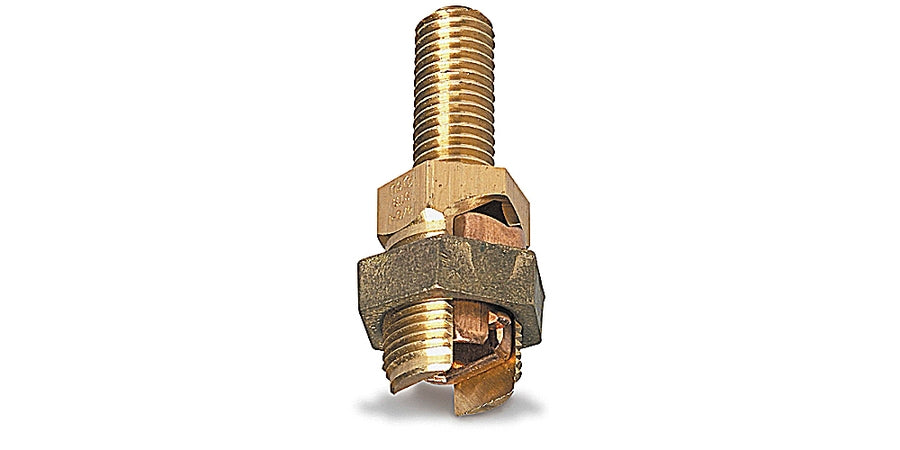

Thomas & Betts SP5DL | Service Post Connector, Stranded, 1/2 in., Bronze, 2AWG
Regular price
$122.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts SP5DL | Service Post Connector, Stranded, 1/2 in...
Regular price
$122.79
Unit price
Brand: Thomas & Betts
|
SKU:
864942
Regular price
$122.79
Unit price
Shipping calculated at checkout.
Description
Description
Thomas & Betts SP5DL | Service Post Connector, Stranded, 1/2 in., Bronze, 2AWG
Long stud double service post connectors for conductors 1/0 - 2 Stranded,s2 solid, stud size 1/2 - 13 x 1 1/4
Specifications
Specifications
Thomas & Betts - SP5DL - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Mechanical Grounding and Bonding
- Other Mechanical Grounding and Bonding
Thomas & Betts - SP5DL - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | SP5DL |
| Awg Max | 1/0 Awg Str |
| Awg Min | 2 Awg Str/Sol |
| Application | Copper To Copper Connections, Grounding Of Steel Structures Or Transformers Using One Or Two Cables, Tapping One Or Two Cables From Bus Bar |
| Conductor Size | 2 Awg |
| Conductor Type | Stranded |
| Connector Type | Service Post |
| Material | Bronze |
| Product Type | Service Post Connector |
| Special Rating | Ul E9809 |
| Stud Diameter | 0.25 To 0.37 In. |
| Stud Length | 1-1/4 In. |
| Stud Size | 1/2 In. |
