Brand: Thomas & Betts
|
SKU:
597744
Thomas & Betts SRPE-750-9-C | Catamount Black Weatherable Polyethylene Reverse-Cut Spiral Wrap, 100 ft. Reel, .750 OD
Regular price
$475.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts SRPE-750-9-C | Catamount Black Weatherable Polye...
Regular price
$475.53
Unit price
Brand: Thomas & Betts
|
SKU:
597744
Regular price
$475.53
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts SRPE-750-9-C | Catamount Black Weatherable Polyethylene Reverse-Cut Spiral Wrap, 100 ft. Reel, .750 OD

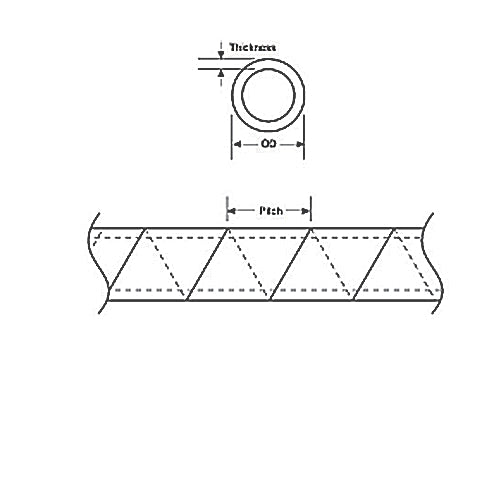

Spiral Wrap, Natural Polyethylene for Temperatures up to 50 Degrees Celsius (122 F), Outside Diameter of 19.05mm (0.750 Inches), Pitch of 19.05mm (0.750 Inches), Nominal Wall Thickness of 1.65mm (0.065 Inches), 30.48m Reel (100 Feet)
Thomas and Betts - SRPE-750-9-C - Features
- Perfect for protection of bundles from .062 to 7 inch diameters.
- Install with gaps for greater flexibility or butted together for maximum abrasion resistance, insulation, and rigidity.
- Available in three material types.
- Application Tools: SR-100
Specifications
Specifications
Thomas and Betts - SRPE-750-9-C - North American Specifications
| UNSPSC | 39131604 Spiral wrapping |
|---|---|
| IGCC | 5395 Spiral wrapping |
| Brand Name | Ty-Rap |
| Sub Brand | Catamount |
| Type | Spiral Wrap |
| Special Features | Perfect for protection of bundles from .062 to 7 inch diameters. |
| Color | Natural |
| Outside Diameter | 0.75 in ; 19.05 mm |
| Maximum Bundle Diameter | 5.0 in ; 127 mm |
| Minimum Bundle Diameter | 0.75 in ; 19.1 mm |
| Length | 100 ft ; 30.48 mm |
| Material | Polyethylene |
| Wall Thickness | 0.065 in ; 1.65 mm |
Thomas and Betts - SRPE-750-9-C - European Specifications
| ETIM | EC002604 Cable bundle hose |
|---|---|
| Model | Spiral hose |
| Nominal diameter | 19.05mm |
| Material | Plastic |
| Material quality | Polyethylene |
| Colour | Natural colour |
| Transparent | N |
| Fire resistant properties | According to UL94 HB |
| Wall thickness | 1.65mm |
Thomas and Betts - SRPE-750-9-C - Package Information
| Outer Quantity | 1 |
|---|---|
| Outer Dimensions (inches) | 20.5x20.4x9.6 |
| Weight Uom | 7.83 lbs. Each |
