Brand: Thomas & Betts
|
SKU:
851782

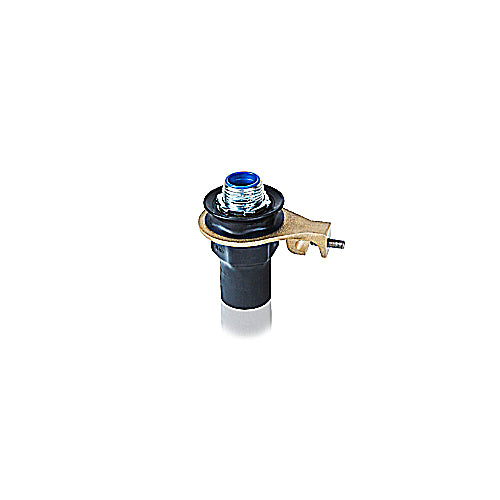

Thomas & Betts ST3/4GR-G | Ocal Conduit Connector with Grounding Ring, Straight, PVC Coated Steel, 3/4 in., Gray
Regular price
$324.22
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts ST3/4GR-G | Ocal Conduit Connector with Groundin...
Regular price
$324.22
Unit price
Brand: Thomas & Betts
|
SKU:
851782
Regular price
$324.22
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts ST3/4GR-G | Ocal Conduit Connector with Grounding Ring, Straight, PVC Coated Steel, 3/4 in., Gray
PVC Coated Liquitight Conduit Connector with Grounding Ring, Straight, Pipe Size 3/4 Inch/21 Metric, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Steel Fitting, Dark Gray
Thomas and Betts - ST3/4GR-G - Features
- A minimum of .040 inch (40 mil) PVC coating is bonded to the exterior.
- Double coated with a nominal .002 inch (2 mil) blue urethane on both the interior and exterior, before PVC coating is applied.
- Pressure-sealing sleeves are designed to protect the connection.
- PVC coated connectors are available in straight, 45 degree and 90 degree configurations.
- Ocal uses T&B Industrial Liquidtight fittings to insure quality installations.
Specifications
Specifications
Thomas and Betts - ST3/4GR-G - North American Specifications
| UNSPSC | 39121420 Liquid tight connectors |
|---|---|
| IGCC | 4585 Liquid tight connectors |
| Brand Name | Ocal |
| Type | Liquidtight Conduit Fitting - Straight |
| Special Features | Pressure-Sealing Sleeves Protect the Connection |
| Application | To Positively Bond Conduit to Box or Enclosure |
| Standard | UL, CSA |
| Size | 3/4 Inch/21mm |
| Material | Steel |
| Finish | PVC Coated |
| Color | Dark Gray |
| NEMA Rating | 4X |
| Environmental Conditions | Hazardous Locations |
Thomas and Betts - ST3/4GR-G - European Specifications
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Nominal diameter | 21mm |
| Nominal size in inch | 3/4 inch |
| Model | Straight |
| Revolving thread | N |
| Construction type | External thread |
| Material housing | Steel |
| Surface protection | Other |
Thomas and Betts - ST3/4GR-G - Package Information
| Outer Quantity | 50 |
|---|---|
| Outer Dimensions (inches) | 14.9x13.5x8.5 |
| Weight Uom | 0.51 lbs. Each |
