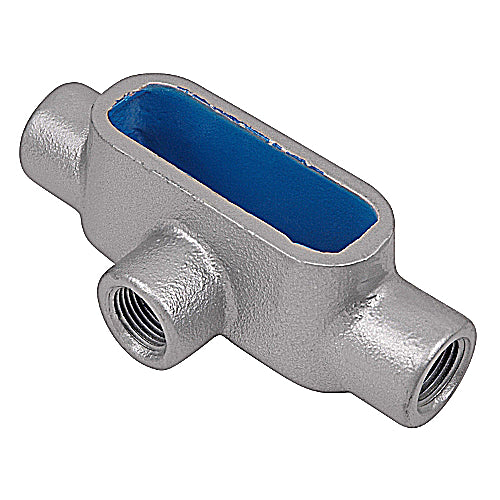

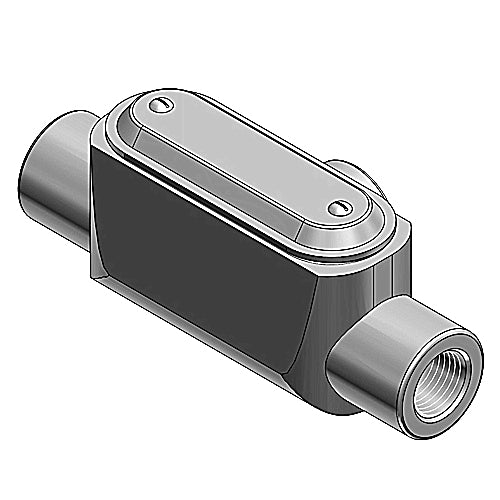

Thomas & Betts T27-G | Type T Form 7 Conduit Outlet Body, 3/4 in.
Regular price
$204.71
Unit price
Brand: Thomas & Betts
|
SKU:
634547
Regular price
$204.71
Unit price
Description
Description
Thomas and Betts T27-G | Type T Form 7 Conduit Outlet Body, 3/4 in.
PVC Coated Conduit Body, T Shape, Form 7, Size 3/4 Inch/21 Metric, Iron, Dark Gray
Thomas and Betts - T27-G - Features
- A minimum of .040 inch PVC coating is bonded to the exterior.
- Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
- Ocal pressure-sealing sleeves on all threaded hubs.
- Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
- Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
Specifications
Specifications
Thomas and Betts - T27-G - North American Specifications
| UNSPSC | 39131708 Electrical conduit fitting body |
|---|---|
| IGCC | 5563 Electrical conduit fitting body |
| Brand Name | Ocal |
| Type | Form 7 Conduit Body |
| Special Features | The Conduit Body and Cover are Double Coated with a Nominal .002 In. Blue Urethane on Both The Interior and Exterior, Before PVC Coating is Applied |
| Application | Act As Pull Outlets for Conductors Being Installed |
| Standard | UL E2969 |
| Hub Size | 3/4 in ; 21 mm |
| Form | Form 7 |
| Length | 6.2 in |
| Width | 2 in |
| Height | 2.6 in |
| Material | Iron |
Thomas and Betts - T27-G - Package Information
| Inner Dimensions (inches) | xx |
|---|---|
| Outer Quantity | 10 |
| Outer Dimensions (inches) | 8.7x7.2x9.2 |
| Weight Uom | 1.87 lbs. Each |
