Brand: Thomas & Betts
|
SKU:
861452
Thomas & Betts TR63 | Aluminum 4-1/4" Service Entrance Compression Splice for Wire Range 4 ASCR, 4 Str., 2 Sol., Orange, Die: 5/8
Regular price
$9.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts TR63 | Aluminum 4-1/4" Service Entrance Com...
Regular price
$9.27
Unit price
Description
Description

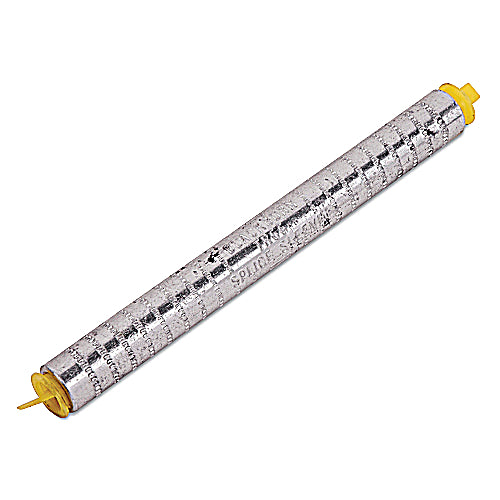

Thomas and Betts TR63 | Aluminum 4-1/4" Service Entrance Compression Splice for Wire Range 4 ASCR, 4 Str., 2 Sol., Orange, Die: 5/8
Aluminum 4-1/4 inch Service Entrance Compression Splice for Wire Range 4 ASCR, 4 Stranded, 2 Solid, Dies: 5/8, TU, 8A, 243, 52.
Pre-filled with Oxide Inhibitor with Orange Caps.
For Aluminum Conductors
Specifications
Specifications
Thomas and Betts - TR63 - North American Specifications
| UNSPSC | 39121449 Wire or cable compression splice |
|---|---|
| IGCC | 4669 Wire or cable compression splice |
| Brand Name | Blackburn |
| Type | Compression Splice Service Entrance |
| Special Features | Contains Oxide Inhibiting Compound |
| Application | Semi-tension Splice used for Service Entrance on Commercial-Industrial Loads |
| Standard | Passes the requirements of ANSI C119.4 |
| Size | 4-1/4 inch |
| Connection | Compression |
| Conductor Range | #4 ACSR ; #4 STR ; #2 SOL |
| Number Of Conductors | 2 |
| Material | Aluminum |
| Insulation | None |
Thomas and Betts - TR63 - Package Information
| Outer Quantity | 150 |
|---|---|
| Outer Dimensions (inches) | 13.375x8.25x7.875 |
| Weight Uom | 0.12 lbs. Each |
