Description
Description

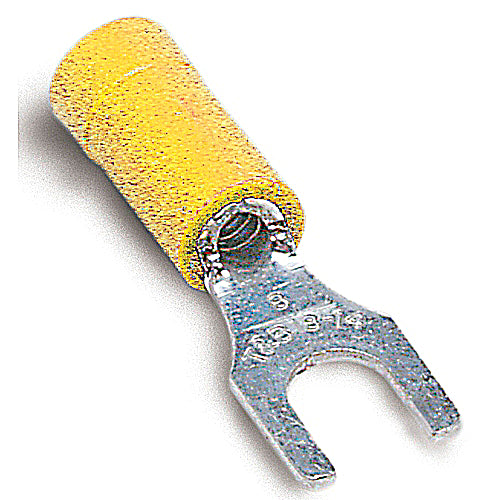

Thomas and Betts TV10-10F-L | Catamount Insulated Vinyl Fork Terminal
Vinyl Insulated Fork Terminal, Length 1.025 Inches, Width .375 Inches, Maximum Insulation .210, Bolt Size 10, Wire Range 12-10 AWG, Color Yellow, Copper, Tin Plated
Thomas and Betts - TV10-10F-L - Features
- Molded Funnel Entry Insulator.
- Brazed Seam.
- Internal Barrel Serrations.
- Application Tools: WT112M, CM2000A
Specifications
Specifications
Thomas and Betts - TV10-10F-L - North American Specifications
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| IGCC | 4603 Electrical terminals |
| Brand Name | Sta-Kon |
| Sub Brand | Catamount |
| Type | Vinyl Insulated Fork Terminal |
| Special Features | Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations. |
| Standard | UL E9809 |
| Wire Size | 12-10 AWG |
| Voltage Rating | 600 V |
| Material | Copper |
| Color | Yellow |
Thomas and Betts - TV10-10F-L - European Specifications
| ETIM | EC001052 Solderless copper terminals for copper conductors |
|---|---|
| Flange shape | Fork shape |
| Insulation | PVC |
| Colour insulation | Yellow |
| Reel packaging | N |
| AWG-range | 12-10 |
| Material | Copper |
| Surface protection | Tinned |
Thomas and Betts - TV10-10F-L - Package Information
| Inner Quantity | 50 |
|---|---|
| Inner Dimensions (inches) | 7x4x.01 |
| Outer Quantity | 500 |
| Outer Dimensions (inches) | 11.25x8.25x22 |
| Weight Uom | 3.75 lbs. per 1000 |
