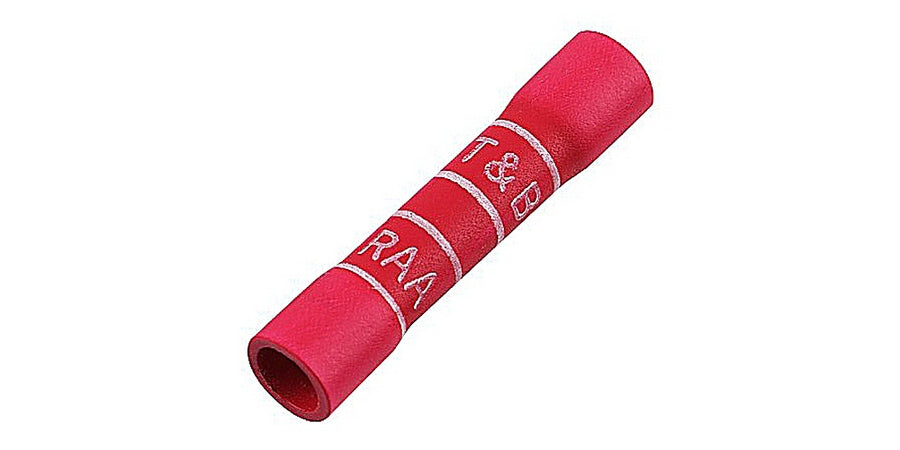

Thomas & Betts TV18-BS-L | Butt Splice Connector, Crimp, Tin Plated, Vinyl, Red, 0.986 in. Lg, Copper, Brazed Barrel Seam, UL
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts TV18-BS-L | Butt Splice Connector, Crimp, Tin Pl...
Description
Description
While poly bags keep their contents dry, they don't offer much other protection, and they aren't environmentally friendly. That's why catamount terminals now come in sturdy plastic containers that safeguard the connectors inside against crushing and can be re-used or recycled when empty. ABB is always adding value to its products. With the introduction of a durable plastic container, the value of ebb's catamount terminals has been significantly enhanced. No more lost or spilled terminals because of inadequate packaging.
Specifications
Specifications
Thomas & Betts - TV18-BS-L - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Compression Grounding and Bonding
- Compression Splices
Thomas & Betts - TV18-BS-L - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | TV18-BS-L |
| Item Description | Butt Splice Connector, Crimp, Tin Plated, Vinyl, Red, 0.986 in. Lg, Copper, Brazed Barrel Seam, UL While poly bags keep their contents dry, they don't offer much other protection, and they aren't environmentally friendly. That's why catamount terminals now come in sturdy plastic containers that safeguard the connectors inside against crushing and can be re-used or recycled when empty. ABB is always adding value to its products. With the introduction of a durable plastic container, the value of ebb's catamount terminals has been significantly enhanced. No more lost or spilled terminals because of inadequate packaging. |
| UPC | 78620993801 |
| Awg Min | 22 |
| Barrel Type | Brazed Seam |
| Color | Red |
| Conductor Material | Copper |
| Conductor Max | 18 Awg |
| Conductor Size | 22 To 16 Awg |
| Connection Type | Crimp |
| Contact Finish | Tin Plated |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Insulation | Vinyl |
| Length | 0.986 In. |
| Material | Copper |
| Package Quantity | 50 Pack |
| Product Type | Butt Splice Connector |
| Seam Style | Brazed Barrel |
| Special Rating | Ul |
| Temperature Rating | 75 C |
| Type | Butt-Splice |
| Voltage Rating | 600 V |
| Wire Size - Maximum | 16 Awg |
| Wire Size - Minimum | 22 Awg |
| Approval | UL 94, CSA |
