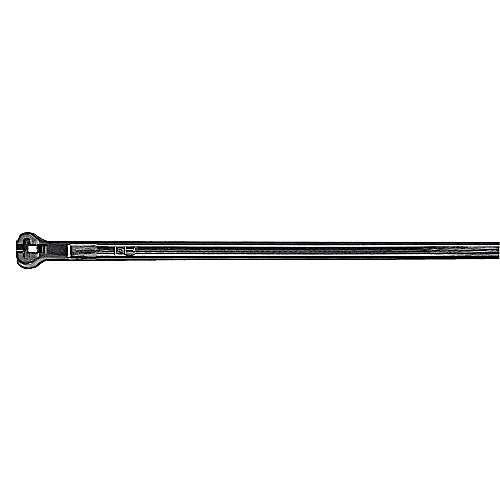

Thomas & Betts TY27MX | Cable Tie, Weather Resistant, Stainless Steel Locking Device, 13.40 L x 0.27 in. W, Black Nylon (100)
Regular price
$704.01
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts TY27MX | Cable Tie, Weather Resistant, Stainless...
Regular price
$704.01
Unit price
Brand: Thomas & Betts
|
SKU:
268066
Regular price
$704.01
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts TY27MX | Cable Tie, Weather Resistant, Stainless Steel Locking Device, 13.40 L x 0.27 in. W, Black Nylon (100)
High Performance Cable Tie, Black Color Nylon 6.6, Length of 343mm (13.5 Inches) for Bundle Diameter up to 102mm (4 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -30 Degrees Celsius (-22 F) to 85 Degrees Celsius (185 F), Bulk Pack
Thomas and Betts - TY27MX - Features
- Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads.
- Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
- Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
- The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
- Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
- 316 stainless steel barb is corrosion resistant and provides greater longevity
Specifications
Specifications
Thomas and Betts - TY27MX - North American Specifications
| UNSPSC | 39121703 Cable ties |
|---|---|
| IGCC | 5034 Cable ties |
| Brand Name | Ty-Rap |
| Type | High Performance |
| Special Features | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standard | UL E49405 |
| Width | 0.27 in ; 4.8 mm |
| Length | 13.5 in ; 342 mm |
| Thickness | 0.06 in ; 1.5 mm |
| Bundle Diameter | Max 4.02 in ; Max 102 mm |
| Material | Nylon/Polyamide 6.6 |
| Color | Black |
| Lock Mechanism | Stainless Steel Barb |
Thomas and Betts - TY27MX - European Specifications
| ETIM | EC000046 Cable tie |
|---|---|
| Band width | 7mm |
| Length belt/tape/tie | 343mm |
| Tie thickness | 1.65mm |
| Max. bundle diameter | 90mm |
| Min. holding force | 530N |
| Operating temperature | -60-+85°C |
| Model | Internal toothing |
| Band closure | Steel nose |
| Material | Plastic |
| Material quality | Polyamide PA |
| Surface protection | Untreated |
Thomas and Betts - TY27MX - Package Information
| Inner Quantity | 500 |
|---|---|
| Inner Dimensions (inches) | 22x14x0 |
| Outer Quantity | 1000 |
| Outer Dimensions (inches) | 15.25x5x9.5 |
| Weight Uom | 10.37 lbs. per 1000 |
