Brand: Thomas & Betts
|
SKU:
634813
Thomas & Betts UNF205-G | Conduit, 42067 Ocal UNF 205 Gray
Regular price
$152.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts UNF205-G | Conduit, 42067 Ocal UNF 205 Gray
Regular price
$152.57
Unit price
Brand: Thomas & Betts
|
SKU:
634813
Regular price
$152.57
Unit price
Shipping calculated at checkout.
Description
Description

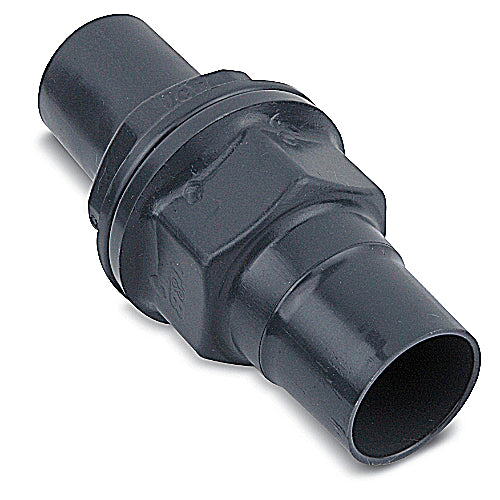

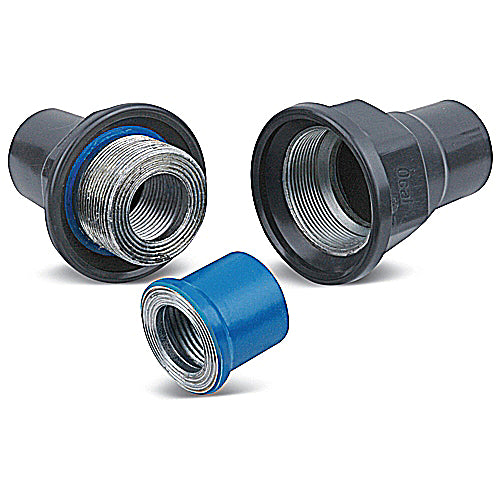

Thomas and Betts UNF205-G | Conduit, 42067 Ocal UNF 205 Gray
PVC Coated Explosion and Dust-Ignition Proof UNF Female Union, Pipe Size 3/4 Inch/21 Metric, 3 Piece, for Hazardous and Non-hazardous Locations, Overall Length 2.13 Inch/54.10 Millimeters, Overall Diameter 1.81 Inch/45.97 Millimeters, Electrogalvanized Steel, Gray
Thomas and Betts - UNF205-G - Features
- Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
- A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
- Pressure sealing sleeves to protect the connection.
Specifications
Specifications
Thomas and Betts - UNF205-G - North American Specifications
| UNSPSC | 39131707 Electrical conduit coupling |
|---|---|
| IGCC | 5548 Electrical conduit coupling |
| Brand Name | Ocal |
| Type | Female Union |
| Special Features | Compact Design Which Permits Assembly with a Minimum of Clearance to Other Adjacent Conduit and/or Equipment |
| Application | To Connect Conduit to Conduit, or to Provide a Means for Future Modification of the Conduit System |
| Standard | UL 1203, CSA |
| Trade Size | 3/4 in ; 21 mm |
| Outside Diameter | 1.81 in ; 45.97 mm |
| Length | 2.13 in ; 54.1 mm |
| Material | Steel |
| Color | Gray |
Thomas and Betts - UNF205-G - European Specifications
| ETIM | EC000939 Coupler for installation tubes |
|---|---|
| Material | Metal |
| Material quality | Steel |
| Surface protection | Other |
| Model | Thread |
| For nominal tube diameter | 21mm |
| Two piece | N |
| With inspection opening and cover | N |
Thomas and Betts - UNF205-G - Package Information
| Inner Dimensions (inches) | xx |
|---|---|
| Outer Quantity | 50 |
| Outer Dimensions (inches) | 15.65x13.9x8.45 |
| Weight Uom | 0.71 lbs. Each |
