Brand: Thomas & Betts
|
SKU:
634834

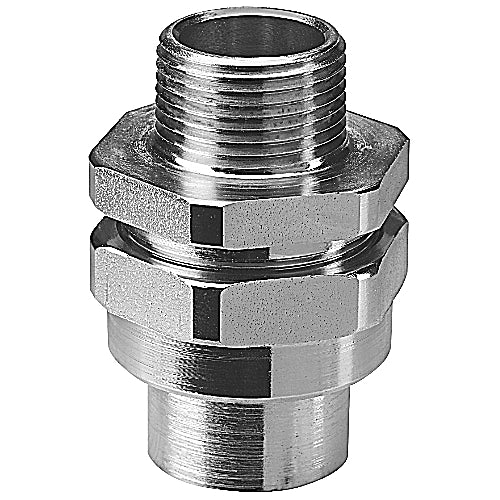

Thomas & Betts UNY605-G | Ocal UNY Union, PVC Coated Steel, Male, Explosionproof, 2 in.
Regular price
$528.94
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts UNY605-G | Ocal UNY Union, PVC Coated Steel, Mal...
Regular price
$528.94
Unit price
Brand: Thomas & Betts
|
SKU:
634834
Regular price
$528.94
Unit price
Shipping calculated at checkout.
Description
Description
Thomas and Betts UNY605-G | Ocal UNY Union, PVC Coated Steel, Male, Explosionproof, 2 in.
PVC Coated Explosion and Dust-Ignition Proof UNY Male Union, Pipe Size 2 Inch/53 Metric, 3 Piece, for Hazardous and Non-hazardous Locations, Overall Length 3.50 Inch/88.90 Millimeters, Overall Diameter 3.81 Inch/96.77 Millimeters, Electrogalvanized Steel, Gray
Thomas and Betts - UNY605-G - Features

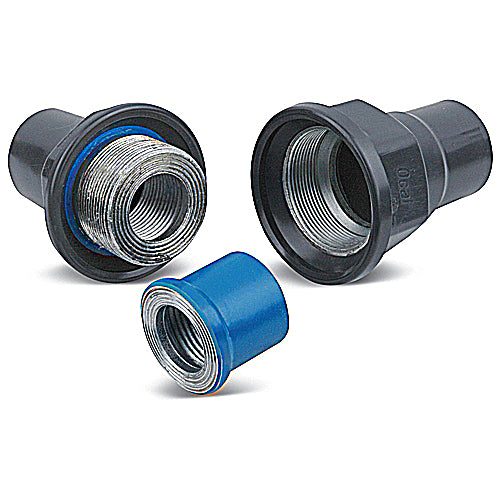

- Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
- A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
- Pressure sealing sleeves to protect the connection.
Specifications
Specifications
Thomas and Betts - UNY605-G - North American Specifications
| UNSPSC | 39131707 Electrical conduit coupling |
|---|---|
| IGCC | 5548 Electrical conduit coupling |
| Brand Name | Ocal |
| Type | Male Union |
| Special Features | Compact Design Which Permits Assembly with a Minimum of Clearance to Other Adjacent Conduit and/or Equipment |
| Application | To Connect Conduit to a Conduit Fitting, Junction Box, or Device Enclosure |
| Standard | UL 1203, CSA |
| Trade Size | 2 in |
| Outside Diameter | 3.81 in ; 96.77 mm |
| Length | 3.5 in ; 88.9 mm |
| Material | Steel |
| Color | Gray |
Thomas and Betts - UNY605-G - European Specifications
| ETIM | EC000939 Coupler for installation tubes |
|---|---|
| Material | Metal |
| Material quality | Steel |
| Surface protection | Other |
| Model | Thread |
| For nominal tube diameter | 53mm |
| Two piece | N |
| With inspection opening and cover | N |
Thomas and Betts - UNY605-G - Package Information
| Outer Quantity | 6 |
|---|---|
| Outer Dimensions (inches) | 16.5x14x7.5 |
| Weight Uom | 4.53 lbs. Each |
