Brand: Thomas & Betts
|
SKU:
741183
Thomas & Betts XD3-G | 1" Conduit Coupling Hub Ocal PVC Coated Prey
Regular price
$6,530.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts XD3-G | 1" Conduit Coupling Hub Ocal PVC Co...
Regular price
$6,530.31
Unit price
Brand: Thomas & Betts
|
SKU:
741183
Regular price
$6,530.31
Unit price
Shipping calculated at checkout.
Description
Description

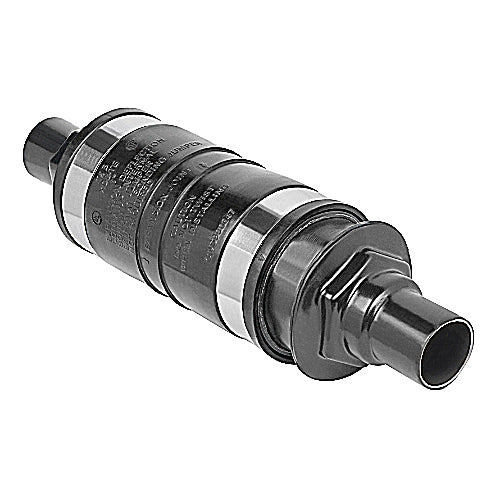

Thomas and Betts XD3-G | 1" Conduit Coupling Hub Ocal PVC Coated Prey
PVC Coated Expansion/Deflection Coupling, Hub Size 1 Inch/27 Metric, Dimensions A: 7 Inch B: 3-15/16 Inch, Gray
Specifications
Specifications
Thomas and Betts - XD3-G - North American Specifications
| UNSPSC | 39131707 Electrical conduit coupling |
|---|---|
| IGCC | 5548 Electrical conduit coupling |
| Brand Name | Ocal |
| Type | Expansion/Deflection Coupling |
| Special Features | Inner Sleeve Maintains Constant I.D. in Any Position and Provides a Smooth Insulated Wireway for Protection of Wire Insulation |
| Application | For Indoors, Outdoors, Buried Underground, or Embedded in Concrete in Non-Hazardous Areas |
| Standard | UL 514B |
| Trade Size | 1 in ; 27 mm |
| Material | Iron Alloy Hub with Neoprene Outer Jacket |
| Color | Gray |
Thomas and Betts - XD3-G - European Specifications
| ETIM | EC000939 Coupler for installation tubes |
|---|---|
| Material | Other |
| Material quality | Other |
| Model | Thread |
| For nominal tube diameter | 27mm |
| Two piece | N |
| With inspection opening and cover | N |
Thomas and Betts - XD3-G - Package Information
| Outer Quantity | 6 |
|---|---|
| Outer Dimensions (inches) | 15.12x13.25x7 |
| Weight Uom | 2.8 lbs. Each |
