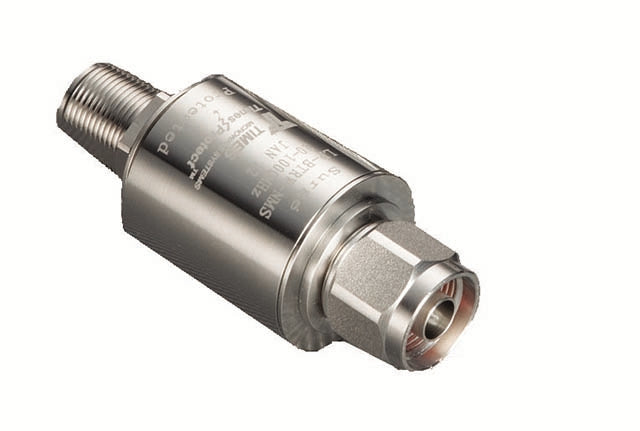

Times Microwave LP-BTRW-NMP | Surge Protector, Brass, Type N Female...
Description
Description
The times protect LP-BTRW high performance surge arrestor series addresses applications in the 20 to 1000 MHz spectrum. Our unique DC blocking technology employed in this design provides optimum isolation of the antenna port from the protected equipment port for maximum surge protection. LP-BTRW surge protectors have exceptional RF performance and are constructed from the highest quality materials for unsurpassed durability and longevity. These units meet and surpass all applicable industry standards. The LP-BTRW product family is available with N connector configurations and fully weatherized to the IP67 standard for outdoor use.
Specifications
Specifications
Times Microwave - LP-BTRW-NMP - Product Categories
- Networking and Wireless
- Wireless
- Wireless Cabling and Connectors
- Other Wireless Cabling and Connectors
Times Microwave - LP-BTRW-NMP - Specifications
| Manufacturer Name | Times Microwave |
|---|---|
| Manufacturer Part Number | LP-BTRW-NMP |
| Item Description | Surge Protector, Brass, Type N Female, Type N Male, 20 to 1000 MHz, White, Bronze, IEC, IP67, ISO, 600 V |
| BRAID MATL | NO BRAID |
| CSA | FT1 VERTICAL FLAME TEST |
| Color | White |
| Connector 1 Type | Type N Female |
| Connector 2 Type | Type N Male |
| Finish | Bronze |
| Frequency | 20 to 1000 MHz |
| Material | Brass |
| Power Rating | 50 to 375 W |
| Product Type | Surge Protector |
| SPEC/STND NEC | NEC GENERAL USE |
| Special Feature | 50 Ohm Impedance, 500 min. Mating Life, Male on Protector Side, IP67 Weatherized |
| Special Rating | IEC, IP67, ISO |
| Temperature Rating | -40 to 85 C |
| Voltage Rating | 600 V |
