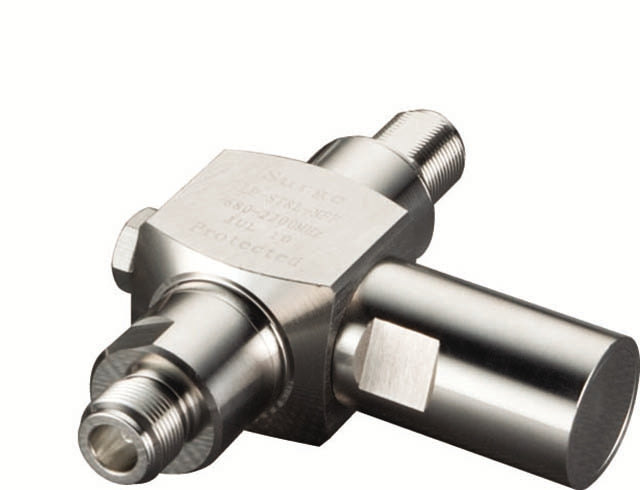

Times Microwave LP-STRL-NFF | Lightning and Surge Protection for Th...
Description
Description
The Times Protect LP-STRL-N high performance series is an exceptional DC blocked design for outstanding surge performance, capable of withstanding multiple lightning strikes. The operating band width of 680MHz - 2200MHz makes the LP-STRL-N series suitable for a broad range of applications. This design covers the 700MHz Band for Public Safety Services as well as LTE (Long Term Evolution) applications. With its excellent passive intermodulation performance, outstanding RF performance over the entire operating band and superior power handling capability, the LP-STRL-N product family is unequaled. Its fully weatherized housing meeting IP67 standard allows for outdoor as well as indoor installation.
Specifications
Specifications
Times Microwave - LP-STRL-NFF - Product Categories
- Power Products
- Power Distribution and Protection
- Surge Protection
- Surge Protection Accessories
Times Microwave - LP-STRL-NFF - Specifications
| Manufacturer Name | Times Microwave |
|---|---|
| Manufacturer Part Number | LP-STRL-NFF |
| Item Description | Lightning and Surge Protection for The 21st Century |
| Amperage | 50 |
| Dimensions | LxW: 4.196 x 1.26 in. |
| Frequency Range | 680 to 2200MHz |
| Frequency | 680 to 2200 |
| Housing Material | Brass |
| Impedance | 50 ? |
| Input Connector | N-Female |
| Insertion Loss | < 0.1 dB |
| Operating Temperature | -40 to +85 |
| Power Rating | 500 W |
| Product Type | DC Surge Protector Module |
| Return Loss | < 1.13:1/< -24 dB (680 to 700MHz), < 1.1:1/< -26 dB (700 to 2200MHz) |
| Temperature Rating | -40 to +85 C |
| Voltage | 100 |
| Wattage | 500 |
