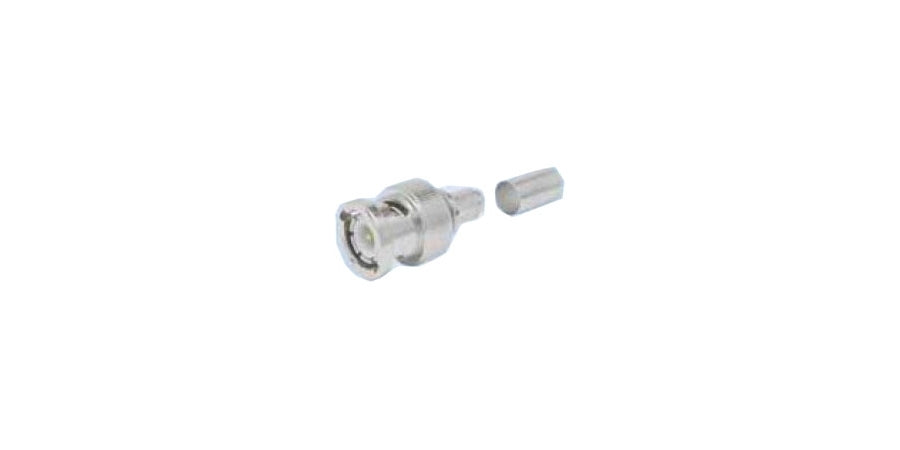

Times Microwave TC-240-BM-X | Coaxial Connector, Male Pin Plug Connector, 1.7 in. L, 4GHz
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Times Microwave TC-240-BM-X | Coaxial Connector, Male Pin Plug Conn...
Description
Description
The TC-240-BM-X features a solder-pin connector and is a perfect option for stranded center conductors. BNC connectors are a classic, dependable design, suited to accommodate a large variety of RG and industry-standard coaxial cables, in a variety of termination styles. Its bayonet-style coupling mechanism enables quick connect and disconnect with positive locking. Mating is achieved with just a quarter-turn of the coupling nut.
Specifications
Specifications
Times Microwave - TC-240-BM-X - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial Hardware
- Coaxial Connectors
Times Microwave - TC-240-BM-X - Specifications
| Manufacturer Name | Times Microwave |
|---|---|
| Manufacturer Part Number | TC-240-BM-X |
| Item Description | Coaxial Connector, Male Pin Plug Connector, 1.7 in. L, 4GHz |
| Body Finish | Alballoy |
| Configuration | BNC |
| Connector Length | 1.7 in. |
| Connector Type | BNC (Male) |
| Connector Width | 0.56 in. |
| Contact Material | Copper |
| Contact Plating | Gold Plated |
| Dimensions | LxW: 1.7 x 0.56 in. |
| Finish | Albaloy |
| For Use With | FBT-240, LMR-240, LMR-240-DB, LMR-240-FR, LMR-240-LLPX, LMR-240-MA, LMR-240-PVC, TCOM-240, TCOM-240-FR Coaxial Cables, 3192-152/CST-240A Stripping Tools, 3190-667/CT-240/200/100 Crimping Tools |
| Frequency Band | 4GHz |
| Frequency Rating | 4GHz |
| Impedance | 50 ? |
| Installation | Crimp |
| Insulation Resistance | >5000 MΩ |
| Interface | BNC |
| Length | 1.7 in. |
| Material | Brass |
| Mounting Type | Free Hanging |
| Product Type | Straight Coaxial Connector |
| Suitable For Use With | FBT-240, LMR-240 and TCOM-240 Type Cables |
| Temperature Rating | -65 to +165 C |
| Termination | Solder, Crimp |
| Voltage | 1000 V |
| Width | 0.56 in. |
