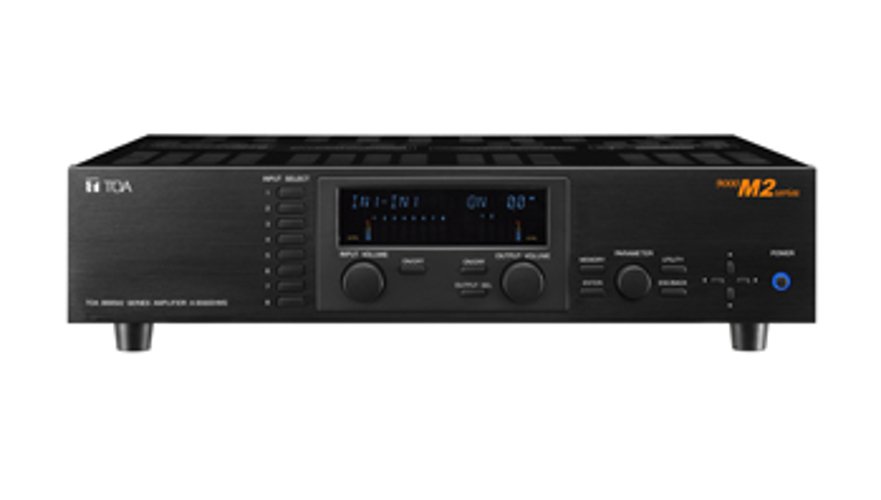

TOA Electronics A-9060SM2 CU | 8-Channel Rackmountable Modular Digital Matrix Mixer and Single Amplifier, 60W
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics A-9060SM2 CU | 8-Channel Rackmountable Modular Digi...
Description
Description
The TOA A9060SM2 mixer amplifier provides an all-in–one solution, combining a mixer with DSP featuring 10 band parametric EQ, compressor, 4 priority levels of ducking, power amplification, auto-mixing, 8 module ports, and control options for phone paging and noise-sensing. Optional modules can be added to maximum of 8 inputs x 8 outputs.
The M2 series adds remote-control functionality, an enhanced GUI interface and improved serial communication. Programming software is included. It is backed by TOA's five-year warranty. It accepts the same modules used in the original 9000 series as well as some modules unique to the M2 series.
Key Features
- Modular Digital Matrix Mixer/ Amplifiers for a multitude of applications including audio-visual, zone paging, room combining and more
- Easy to Configure and Operate
- Exceptional Audio Quality
- 24-bit, 48kHz sampling
- Ultra-Low Distortion –0.0008%
- Minimum Latency -1.1ms (D-001T input to output)
- Modular Mixer — up to 8 mic / line inputs and 8 outputs
- Dual Channel Digital Signal Processor (DSP)
- 10-Band Parametric EQ
- High and Low Pass Filters
- Compressor
- Loudness Contour
- Bass and Treble
- Delay (MIXER mode)
- TOA Speaker EQ Presets
- Single Channel Power Amp
- Dual Modes (MIXER and MATRIX) — two separate feature sets to suit both simple mixing and complex multi-zone distribution applications
- Telephone Zone Paging — access up to eight zones with optional ZP-001T module
- Automatic Mic Mixing — automatically adjusts output level based on the total number of open microphones (NOM)
- Ambient Noise Control — automatically increase or reduce output levels in response to changes in ambient noise
- Multi-function Display allows programming and operation without a PC
- Rack-mount Kit Included (2RU)
Specifications
Specifications
Includes
- Power cord (2 m (6.56 ft)) x1
- Rack mounting bracket x2
- Bracket mounting screw x4
- Blank panel x7
- Blank panel mounting screw x14
- Removable terminal plug (3-pin) x1
- Removable terminal plug (7-pin) x1
- Removable terminal plug (14-pin) x1
- CD x1
Additional Specifications
| Type | AUDIO AMPLIFIER |
|---|---|
| UNSPSC Code | 52161600 |
