Description
Description

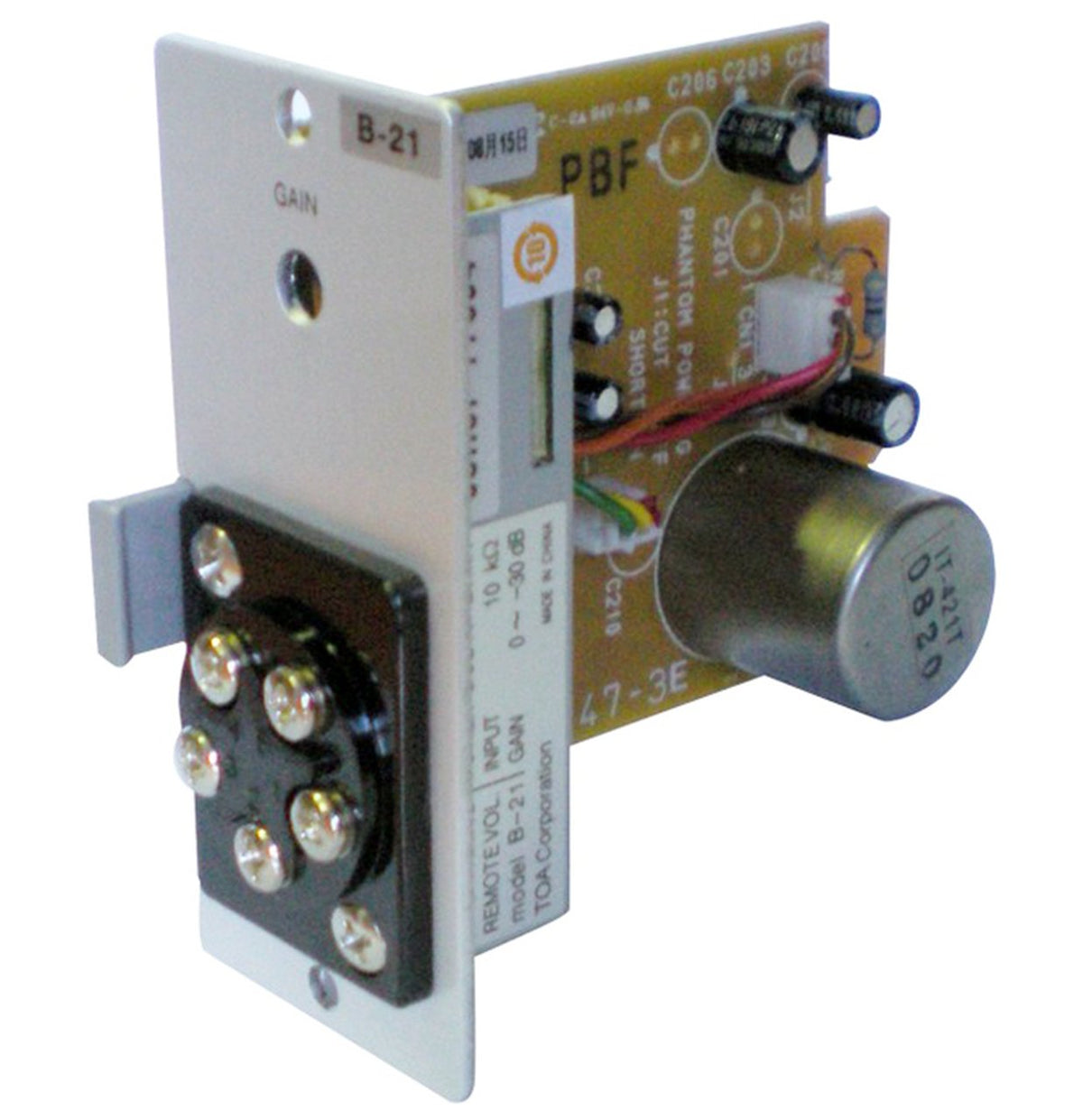

The TOA B21S balanced line input is a 900 series module with screw terminals and remote volume control. For balanced or unbalanced line level equipment such as AM / FM tuners, tape decks and CD players. Transformer isolation minimizes ground loop problems when connecting remote equipment. Allows remote control of input signal using an external potentiometer.
The B-21S is a line module to be used in conjunction with the 900 series or AX-1000 amplifier. It has a balanced input and can be remotely controlled.
Specifications
Specifications
Specifications
- Controls/Functions: Gain Terminals
- Performance Input: 10k?
- Input Sensitivity: -16 ~ +14dBu
- Gain (Adjustable): -32 ~ -2dB
- Physical Connector: Screw Terminal
- Power Source: 24VDC
- Current Consumption: Less than 27mA
- Input Sensitivity (Rated Output 1V ): 0.9 - 10V (adjustable)
- Noise Output (20Hz - 20kHz BPF): Less than 50µV
- Distortion: Less than 0.05%
- Frequency Response: 20Hz - 20kHz
- Remote Volume Control: More than 55dB
- Input Connector: 5-Pin screw terminal
- Output Connector: 6-Pin card edge-connector
- Dimensions: 35 (W) × 78 (H) × 88mm (D)
- Weight: 90g
Additional Specifications
| UNSPSC Code | 46171600 |
|---|
