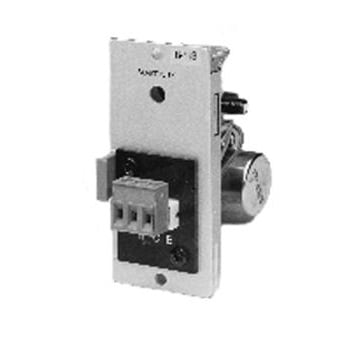

TOA Electronics B-41S | Balanced or Unbalanced Line Input Module for 900 Series Amplifiers with Mute-Send, Removable Terminal Block
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics B-41S | Balanced or Unbalanced Line Input Module fo...
Description
Description
The TOA B-41S is a line module to be used in conjunction with the 900 series and AX-1000 amplifier. It has a voice-activated muting control output and a balanced input.
The TOA B41S is a 900 series module input with screw terminals. For balanced or unbalanced line level equipment such as AM / FM tuners, tape decks and CD players. Transformer isolation minimizes ground loop problems when connecting remote equipment. Signal at input terminals activates mute bus.
Specifications
- Controls/Functions: Mute Send Sensitivity
- Performance Input: 10k?
- Input Sensitivity: -16 ~ -34dBu
- Gain (Adjustable): -2dB
- Physical Connector: Removable Terminal Block
- Power Source: 24VDC
- Current Consumption: Less than 9mA
- Input Sensitivity: (Rated Output 1V ) 0.7 - 1.4V
- Frequency Response: 20Hz - 20kHz
- Signal-Activated Muting: 8 - 15mV
- Input Connector: 3-Pin terminal block
- Output Connector: 6-Pin card edge-connector
- Dimensions: 35 (W) × 78 (H) × 88mm (D)
- Weight: 80g
Specifications
Specifications
Specifications
- Controls/Functions: Mute Send Sensitivity
- Performance Input: 10k?
- Input Sensitivity: -16 ~ -34dBu
- Gain (Adjustable): -2dB
- Physical Connector: Removable Terminal Block
- Power Source: 24VDC
- Current Consumption: Less than 9mA
- Input Sensitivity: (Rated Output 1V ) 0.7 - 1.4V
- Frequency Response: 20Hz - 20kHz
- Signal-Activated Muting: 8 - 15mV
- Input Connector: 3-Pin terminal block
- Output Connector: 6-Pin card edge-connector
- Dimensions: 35 (W) × 78 (H) × 88mm (D)
- Weight: 80g
Additional Specifications
| UNSPSC Code | 46171600 |
|---|
