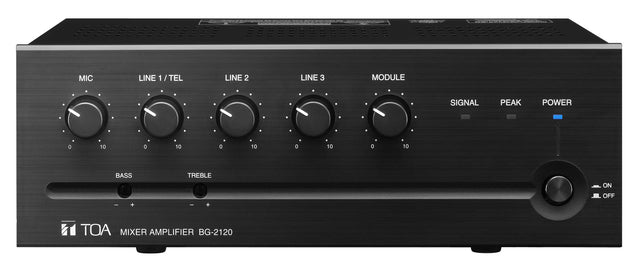

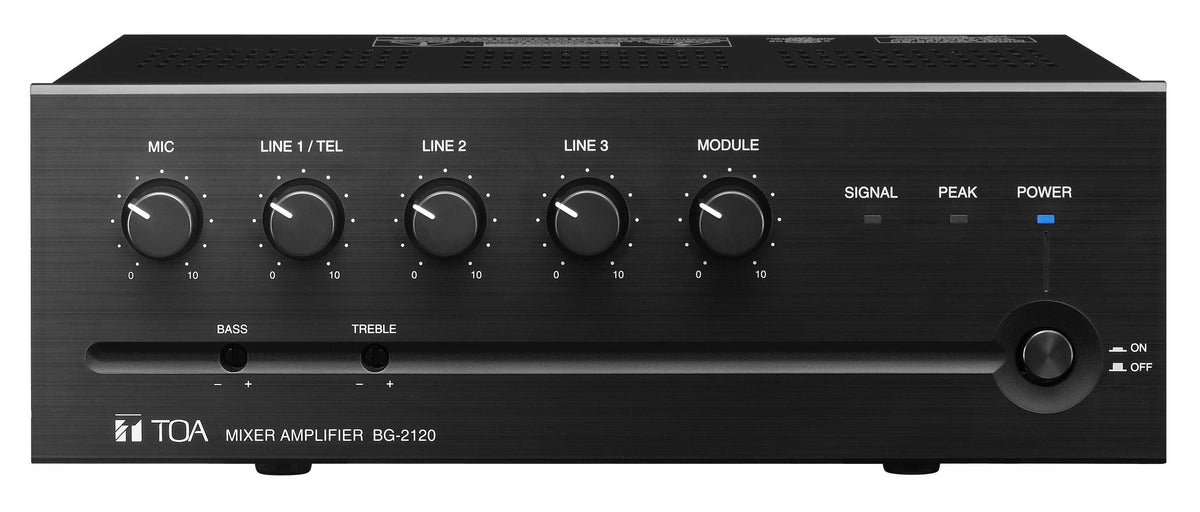

TOA Electronics BG-2120 CU | 5-Channel Mixer and Power Amplifier, 120W
Description
Description
TOA's BG-2000 Series Mixer / Amplifier is a total redesign of the highly successful BG-1000 Series and not just for design’s sake. These Mixer / Amps feature a newly-engineered chassis, removable euro-block connectors and assignable MOH / Second Zone source assignment. Access to mute priority and other settings is provided via rear panel DIP switches-no more “popping the top”.
The BG-2120 is a 120W 5-input mixer amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms, and is equipped with the MOH OUT that permits 2-channel broadcast when used in conjunction with the optional booster amplifier BA-235 (35W) or BA-260 (60W).
Key Features
- 120W amplifier
- Compact five channel Mixer / Amplifier for paging, background / foreground music distribution and music / messaging on hold.
- All inputs / outputs with removable terminal blocks allow quick and easy installation.
- Any of five inputs assignable to MOH / Zone 2 output.
- RCA pin jacks for LINES 2 & 3.
- Phantom Power (+24VDC) incorporated for mic input.
- Module slot accepts optional 900 series plug-in modules for custom system configurations
- Rear panel-mounted DIP switches allow easy configuring of settings
- Provides auto/manual mute function with adjustable muting sensitivity
- Incorporates remove volume control connection.
- 2-channel broadcast capability together with zone 2 expansion capability in conjunction with BA-200 series.
- Tamper-proof, front-panel bass and treble controls are recessed to protect their settings
- Thermal protection circuitry prevents potential damage from excessive heat build-up
- AC mains circuit breaker
- Supplied accessory security knobs for volume controls prevent unauthorized volume setting changes
- UL / cUL listed
- Manufacturer's 5-year warranty
Specifications
Specifications
Includes
- Volume control cover: YA-920 x5
- Removable terminal plug (2 pins) x4
- Removable terminal plug (3 pins) x2
- Removable terminal plug (4 pins) x1
- Removable terminal plug (5 pins) x1
Additional Specifications
| Type | AUDIO AMPLIFIER |
|---|---|
| UNSPSC Code | 52161600 |
