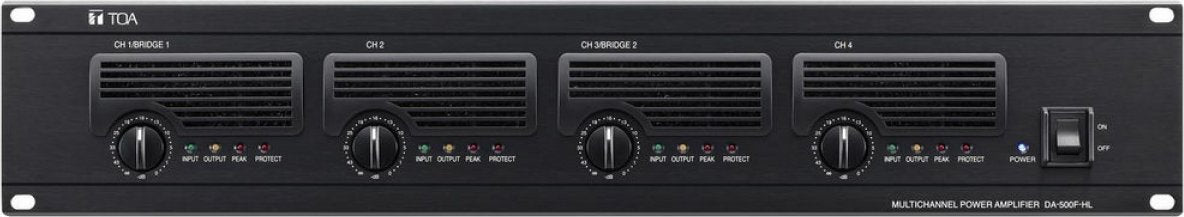

TOA Electronics DA-550F CU | 550W 4-Channel Digital Amplifier
Description
Description
The TOA DA Series multi-channel digital power amplifiers are ideal for multi-zone distributed speaker systems and professional sound applications. Engineered with Class D technology, the DA Series amplifiers operate at 85 percent efficiency and consume almost one-third less power than conventional analog amplifiers. The compact and lightweight design and ultra-low heat dissipation allow designers to rack-mount up to five units without open space between units.
The DA Series is comprised of high and low impedance four-channel models each equipped with an independent power supply for each channel to assure continuous operation and unmatched reliability and performance. Other features include recessed stepped attenuators for precise gain calibration, removable dust filters for easy maintenance, and optional isolation transformer.
Competitively priced, the DA Series multi-channel power amplifiers are backed by TOA’s five-year warranty.
Key Features
- DA-550F: 4x 500W (4?), 4x 350W (8?), 2x 1100W bridged (8?)
- Class D design – 85% efficient
- 30% lower power consumption than conventional amplifiers
- Stack up to 5 units without open spaces between units
- Lightweight (14.6 to 19.4lbs.)
- Independent power supply for each channel
- Low heat dissipation
- Recessed stepped attenuators
- Comprehensive protection circuitry
- Removable dust filters for easy maintenance
- Five-year warranty
Specifications
Specifications
Includes
- Removable terminal plug (3 pins) x4
- Tamper-proof cap x4
Additional Specifications
| Type | AUDIO AMPLIFIER |
|---|---|
| UNSPSC Code | 52161600 |
