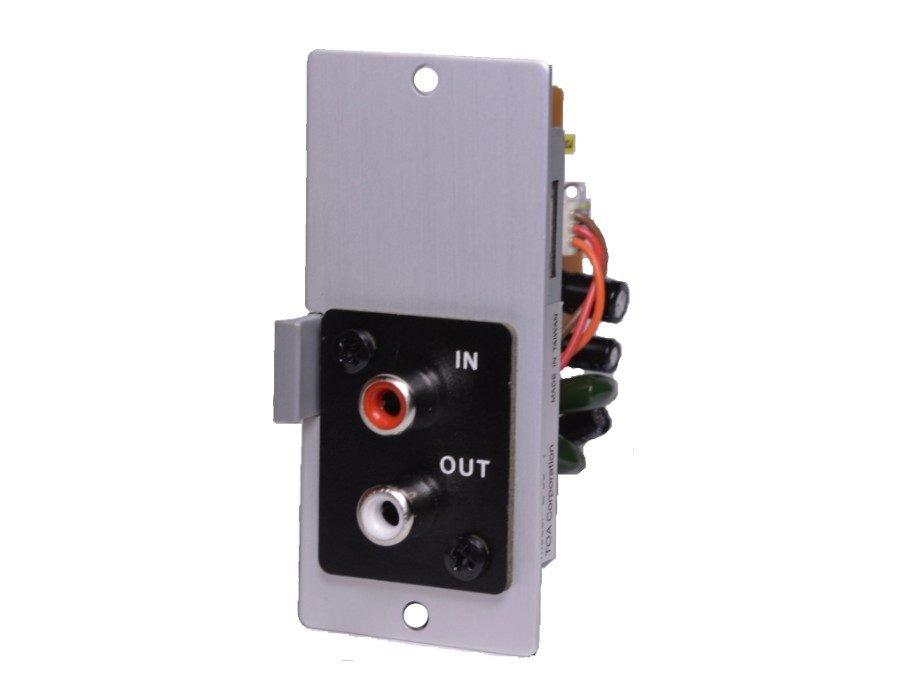

TOA Electronics E-03R | EQ Processor Module for F-122CU Speakers
Regular price
$67.95
Unit price
Brand: Toa Electronics Inc.
|
SKU:
449826
Regular price
$67.95
Unit price
Description
Description
Processor module for F-122CU speaker. Connects between pre-am output and power amp output. Includes dual RCA cable.
The E-03R is a controller module for F-121C / 121CM to be used in conjunction with the 900 series modular mixers and amplifiers (MK2 and A series) .
Specifications
- Input Impedance: 100k?, unbalanced
- Output Impedance: 1k?, unbalanced
- Sensitivity: +2.2dBu
- Input 1V @ 100k?, RCA pin jack
- Output Level: +2.2dBu
- Output 1V @ 1k?, RCA pin jack
- Noise (S/N): 86dB
- Noise Output (20Hz - 20kHz BPF) Less than 50?V
- Physical Connector: Dual RCA
- Power Source: 24VDC
- Current Consumption: Less than 25mA
- Distortion: Less than 0.05%
- Dimensions 35 (W) × 78 (H) × 88mm (D)
- Weight: 55g
Specifications
Specifications
Specifications
- Input Impedance: 100k?, unbalanced
- Output Impedance: 1k?, unbalanced
- Sensitivity: +2.2dBu
- Input 1V @ 100k?, RCA pin jack
- Output Level: +2.2dBu
- Output 1V @ 1k?, RCA pin jack
- Noise (S/N): 86dB
- Noise Output (20Hz - 20kHz BPF) Less than 50?V
- Physical Connector: Dual RCA
- Power Source: 24VDC
- Current Consumption: Less than 25mA
- Distortion: Less than 0.05%
- Dimensions 35 (W) × 78 (H) × 88mm (D)
- Weight: 55g
Additional Specifications
| Type | SPEAKER |
|---|---|
| UNSPSC Code | 52161600 |
