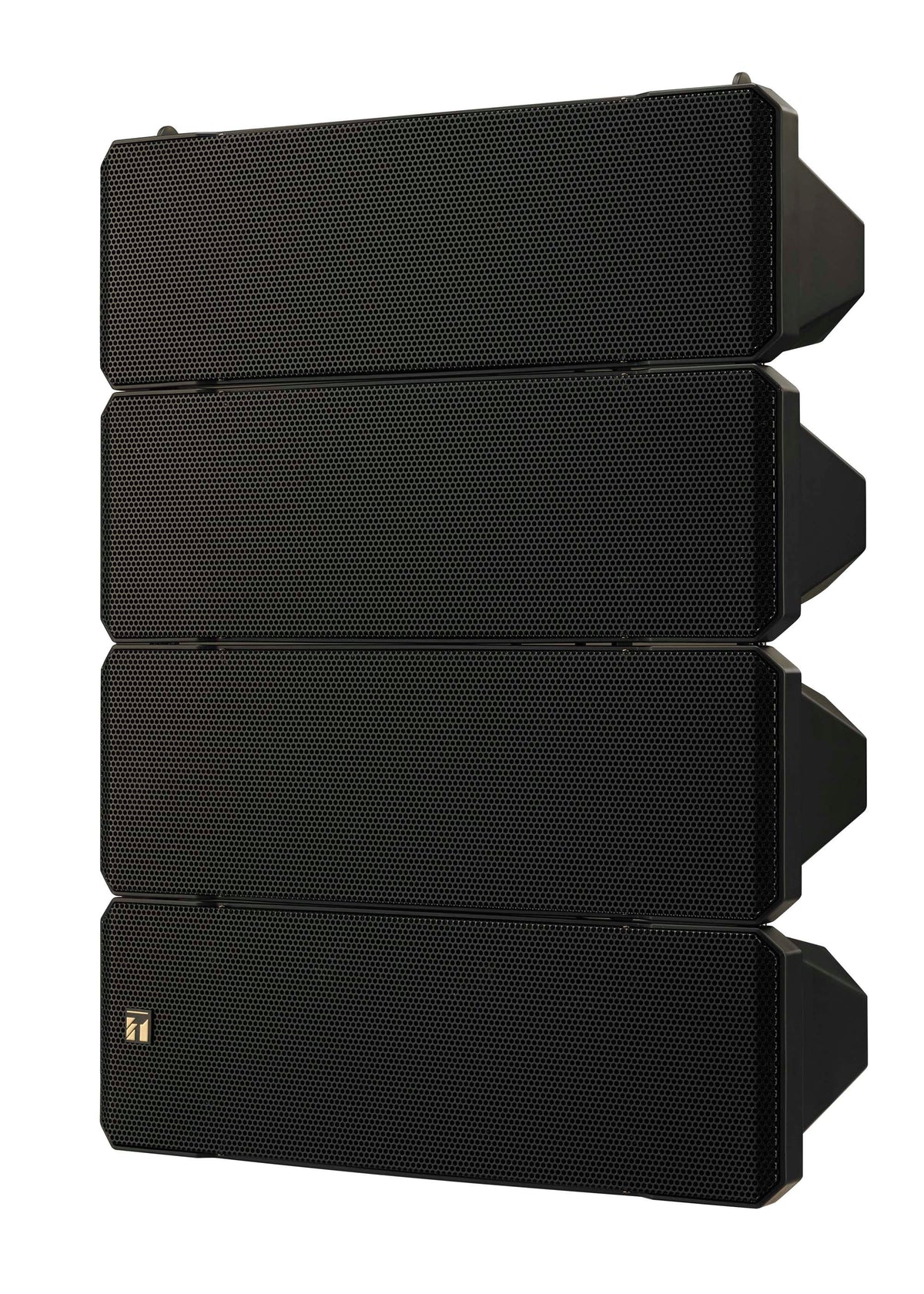

TOA Electronics HX-7B | 750W Variable Dispersion Speaker, Black
Regular price
$2,105.90
Unit price
Brand: Toa Electronics Inc.
|
SKU:
801690
Regular price
$2,105.90
Unit price
Description
Description
The TOA HX-7B is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in a vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. The HX-7B is designed for indoor use.
Key Features
- 4 cell configuration each incorporating
- (2) 5" Low-frequency drivers
- (1) Center-mounted, waveguide-loaded, 1"-exit compression driver
- Flexible vertical angle adjustment between 0° and 45° (60° with second HX-7 and optional adapter).
Specifications
Specifications
Specifications
- Enclosure: Bass-reflex type
- Power Handling Capacity
- Continuous pink noise: 250W
- Continuous program: 750W
- Rated Impedance: 8?
- Sensitivity: 100dB (1W @ 1m).
- Frequency: 75Hz - 20kHz
- Crossover Frequency: 1.7kHz
- Directivity Angle
- Horizontal: 100°
- Vertical: Depending on directivity angle mode
- Speaker Component:
- Low Frequency: 13cm cone - type X8
- High Frequency: Wave front control horn with compression driver X4
- Input Terminal: Speakon NL4MP X 2 and M4 screw terminal, distance between barriers: 9mm
- Enclosure: polypropylene, black
- Punch net: surface - treated steel plate, black, paint
- Hanging bracket: steel plate, t3.0, black, paint
- Dimensions: 497 (W) X 664 (H) X 274mm (D)
- Weight: 30kgs (66.14lbs)
Additional Specifications
| Type | SPEAKER |
|---|---|
| UNSPSC Code | 52161600 |
